Boxie - an always offline audio player for my 3 year old

2025-04-26

Channeling the spirit of the Gameboy

Table of Contents

At the end of July 2024, I embarked on a journey to learn electronics so I could build little gadgets for my son. In my introductory post I described a few electronic toys he uses frequently, including the Tonie Box, a device that plays audiobooks and has a huge library of content. The Tonie Box is great, until it isn't. As outlined in my original post, it has several deficiencies. Back then, I didn't think I would ever be able to build my own replacement.

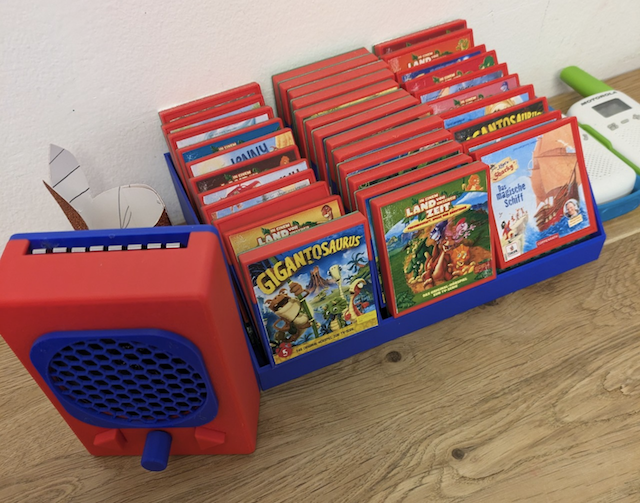

Fast forward a few months, and I've learned enough electronics to build my son's own audio player. Here's the preliminary result:

It's been in "prod" since January 2025. It's his daily driver, be it at the breakfast table or when going for stroll in his buggy. Yes, the volume control is backwards. Easy to fix in software.

What I learned these past months

It turned out to be easier than I thought. I had to pick up these skills:

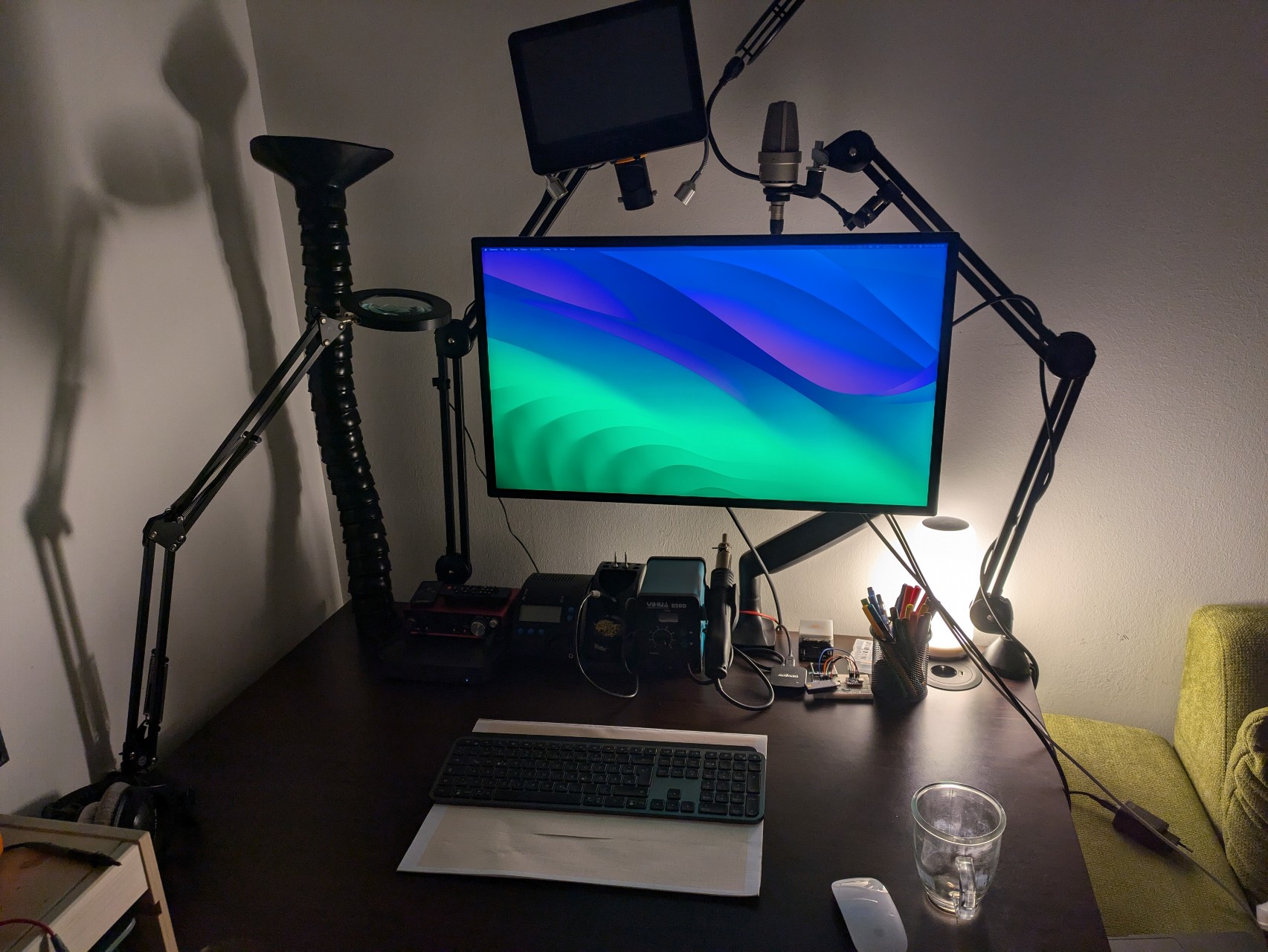

I also had to buy myself some tools. Here's my battle station.

Battle Station

The list of all my tools (with purchase links):

Now, my recent blog entries may have given you the idea that I'll teach you everything needed to reach this stage. I'm afraid that's not the case. It would take considerable resources, which I'd rather spend on my family and personal projects.

However, the above list of tools and skills is a good starting point once you're past the "made an LED blink with an Arduino" stage. Many talented people have described (SMD) soldering, PCB design, and 3D modeling in depth, either in books or videos, much better than I could. See my previous posts for recommendations.

Studying existing designs is also a fantastic way to learn, just as with software. For example, all Adafruit products are open source, letting you study their schematics and PCB designs. Want to design a power management circuit? Check out their PowerBoost 1000 schematics and PCB layout files. Similarly, when creating my ESP32-based boards, I drew inspiration from Unexpected Maker and Waveshare designs. E.g. check out the Waveshare ESP32-S3 Mini schematics .

My final recommendation is to get away from Arduino as soon as you possibly can. It's a great way to learn, but eventually, you'll need to go one level deeper. That opens up a whole new world of possibilities. Like porting DOOM to the ESP32-S3 and have it run at 44FPS.

Eventually, you'll write your own Arduino like framework to handle all the low level stuff, like communicating with SPI displays, driving audio or neopixels, etc. My entry into this is mcugdx, a simple C-API on top of ESP-IDF that can already do a lot (on ESP32-S3 at least). You can also find the above DOOM port in the mcugdx examples. I don't currently give support or documentation. If you know your way around ESP-IDF, you should be able to figure it out, given the examples and the sdkconfig files found in the repository.

In the remainder of this post, I'll go through the design process of Boxie, walk you through the schematics and PCB layout, show you how I came up with the 3D printed enclosure design, and give an overview of the software I wrote to make it all work.

Like a Game Boy, but for audiobooks

I started by thinking about how I wanted the boy to interact with the device. I'm in love with the Game Boy form factor, so I wanted something similar in size and shape. It needed to be battery powered for portability.

Instead of the Tonie Box's volume-controlling ears, I wanted a simple knob. The Tonie Box requires hard smacks to change chapters or songs, which rarely works and often knocks the Tonie figure off. I opted for simple navigation buttons instead.

As for content storage, the Tonie Box keeps audio on an SD card, with Tonie figures acting as RFID tags that trigger specific audio files. This requires internet connectivity for downloading files and potentially gives the company usage data.

I wanted none of that. The device should be completely offline, with content delivered "physically" like the cassette tapes of my youth. A Game Boy cartridge form factor was perfect, but with a twist. Unlike a Game Boy where the cartridge label partially disappears into the slot, I wanted the cartridge label to remain fully visible.

This decision came from watching my boy in the car. When we listen to audiobooks through Android Auto and Spotify, he intently focuses on the cover art displayed on the dashboard. These covers, showing story characters, are distinct for each book. Having the cartridge visible lets him see the artwork while listening.

Yes, a protruding cartridge is a potential breaking point, but I'll make the design sturdy enough to handle it.

For reliability, I wanted the device to be as fail-safe as possible. No power button needed, inserting a cartridge turns it on, removing it turns it off. It should survive inevitable drops, which means using durable NiMH batteries instead of LiPos.

In summary, the device needs to be:

The cartridge

Since I use an ESP32-S3 as the brain, I opted for micro SD cards as the medium to store audio files. It's super easy to access a FAT filesystem on an SD card via ESP-IDF. Just wire up the SD card's pins to the ESP32-S3's GPIOs and use the SD card API.

To elicit that Game Boy cartridge feel and to make inserting and removing the cartridge easy and sturdy, I designed a custom PCB that holds and exposes the micro SD card's pins, and a 3D printed cover onto which I could stick the label. You can view the end result in this instructional video for my SO, so she can assemble cartridges as well:

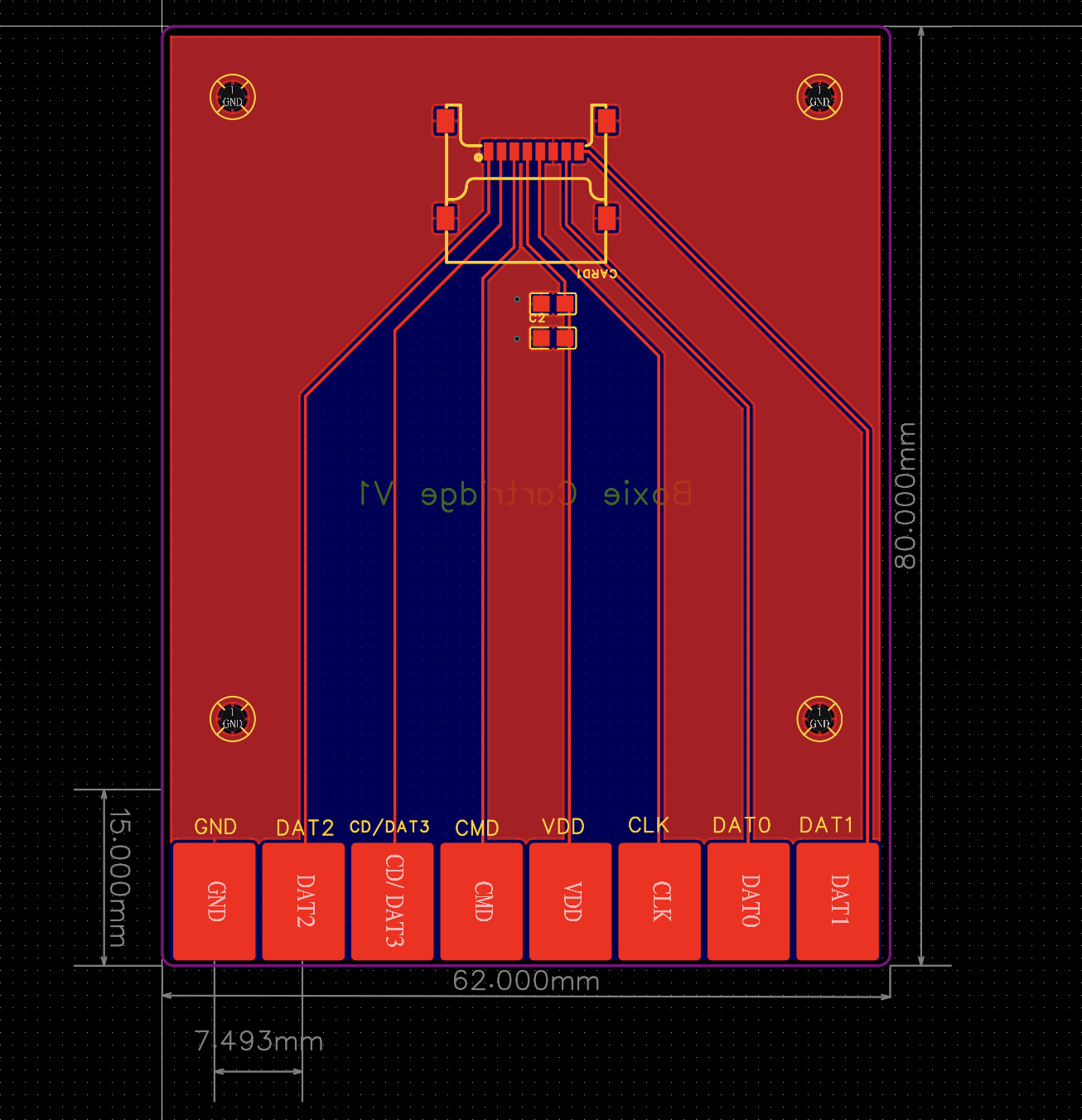

The PCB is a trivial 2 layer board. A micro SD card socket holds the card. Each of the pins is exposed to its corresponding big pad at the bottom of the PCB. Four M2 screw holes let me screw on the 3D printed cover.

To decide on the size, I drew a bunch of rectangles on millimeter grid paper and picked the one that looked right. Grid paper is your best friend when getting a feel for sizes!

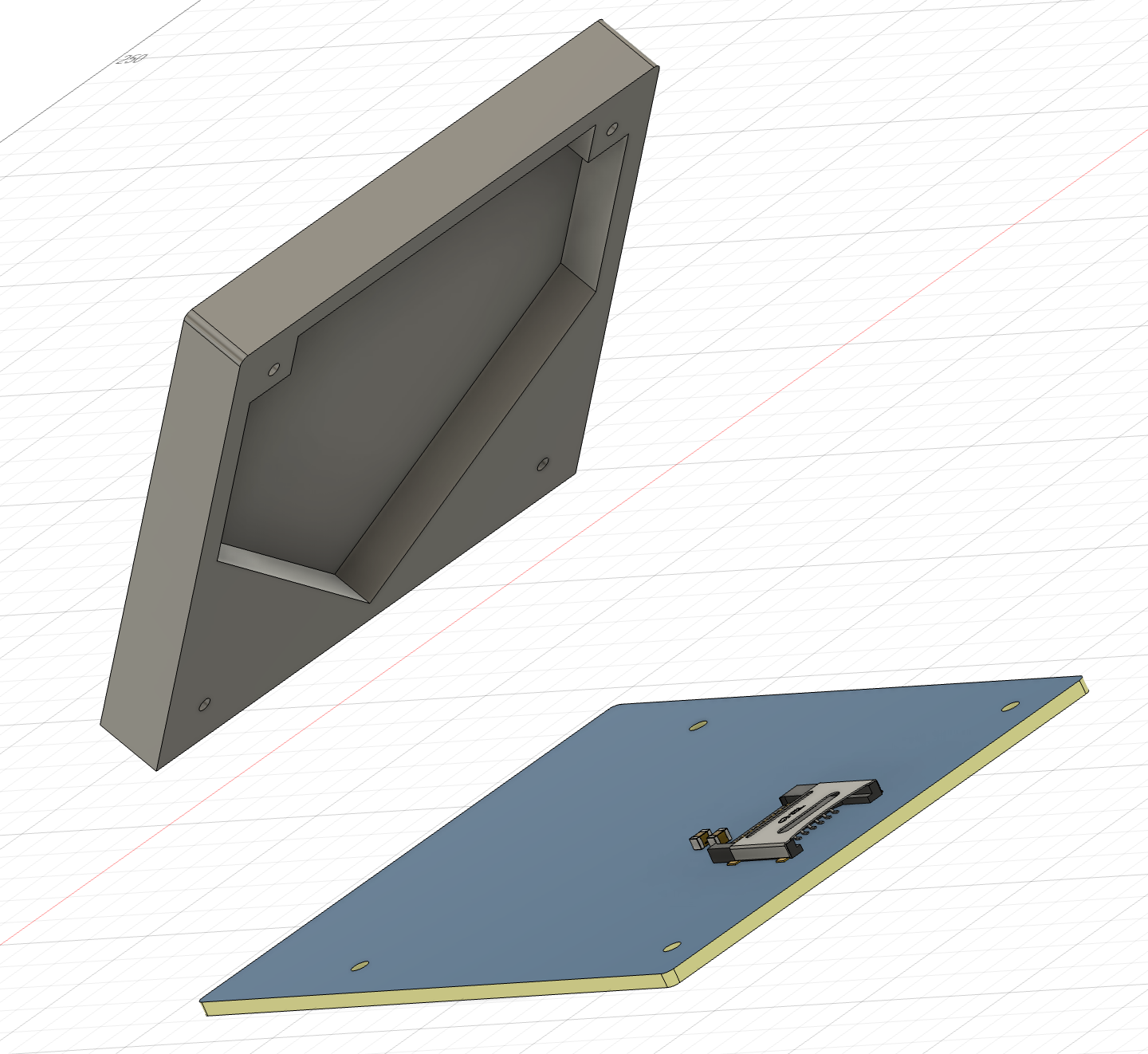

I designed the cover in Fusion 360. I exported the PCB design from EasyEDA as a STEP file and imported it. I created a sketch at the top of the PCB, projected the PCB outline onto it, and extruded it to a depth that looked good. Finally, I added a cutout for the SD card socket, screw holes, and an indented area for the label. That took 5 minutes.

I sent off the PCB design to JLCPCB and ordered a batch of 100 PCBs, along with 100 SD card sockets from LCSC. I also printed 30 covers on my 3D printer.

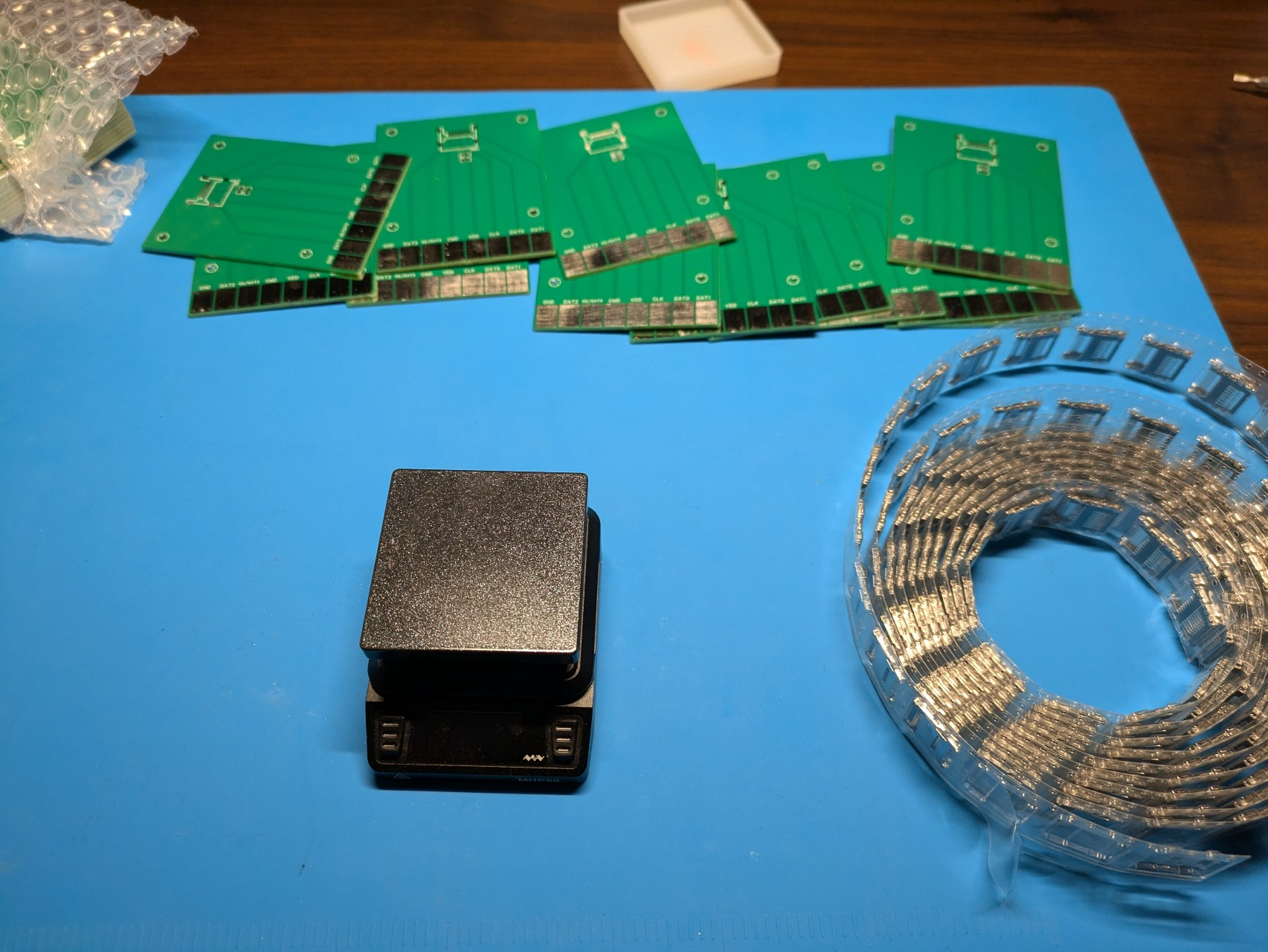

I then proceeded to hand solder 100 SD card sockets onto 100 PCBs, cursing myself that I didn't order a stencil and didn't use JLCPCB's assembly service. It took 2 nights. I used a toothpick to apply the solder paste to the pads.

Yeah, I'm dumb. You might have noticed the 2 capacitor pads on the PCB layout above. I ended up not populating those, which saved a bit of time.

The cartridge slot connector

How do I connect the cartridge pads to the ESP32-S3? The Game Boy uses a traditional edge connector, with gold plated contacts on the cartridge and a corresponding connector in the slot.

Since I didn't know how to create "chamfered gold fingers" in EasyEDA or get JLCPCB to manufacture such PCBs, I tried a different approach. But not before failing first.

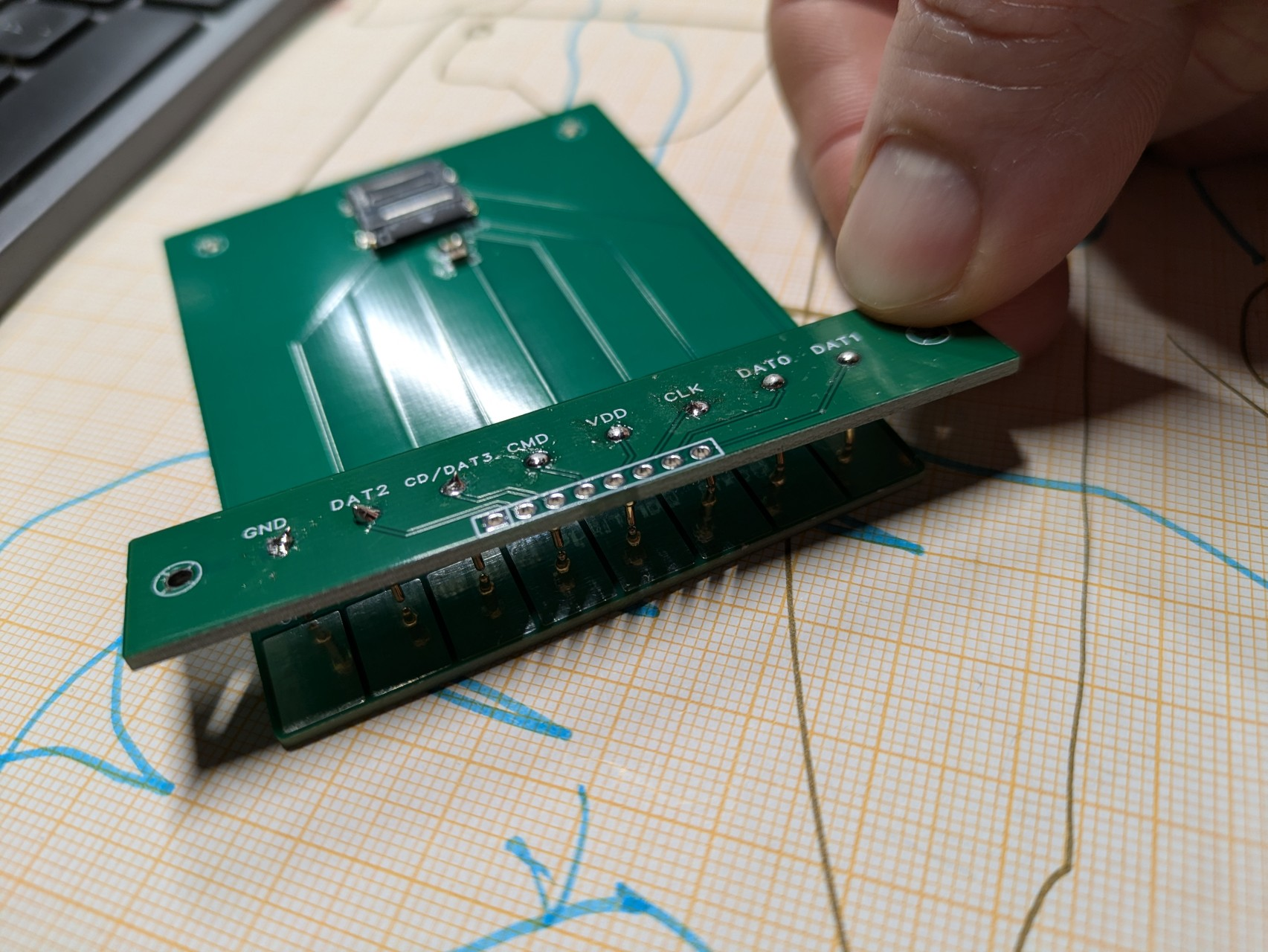

The cartridge design was inspired by Abe's project, which uses pogo pins on the cartridge reader to contact the cartridge pads:

This didn't work at all. Getting the vertical spacing correct was extremely difficult, and even with decent spacing, inserting a cartridge was too tough for a 3 year old. The soldered pogo pins also bent easily.

After some thinking about the "3 year old friendly" requirement, I came up with this:

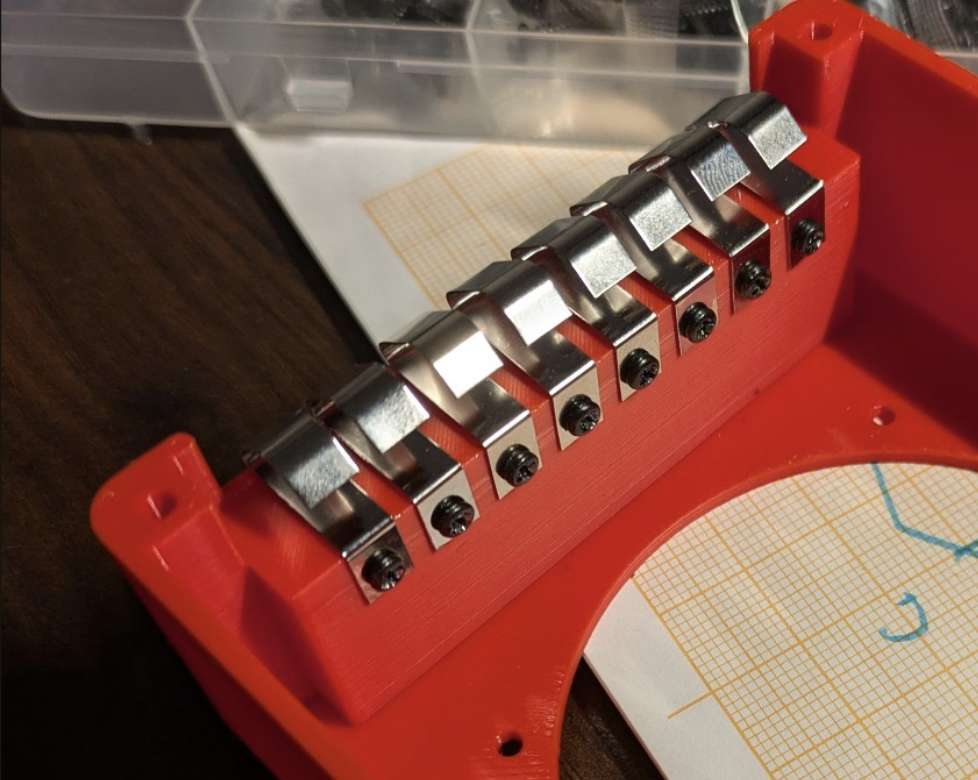

I used battery springs, which are sturdy enough to handle a 3 year old's enthusiasm. Instead of soldering, I use ring terminals crimped onto wires and screwed onto the battery springs in the 3D enclosure.

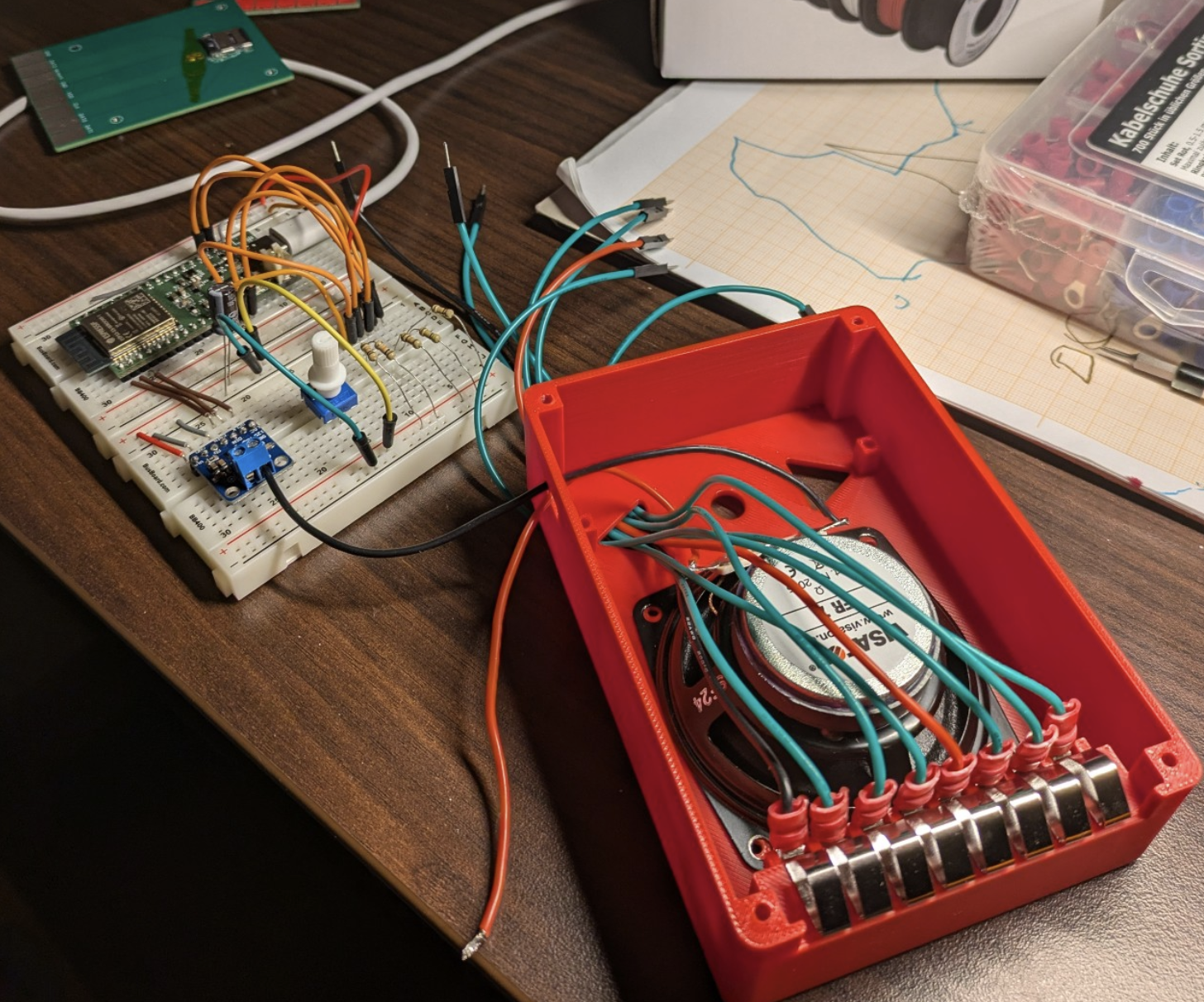

The result is easy to assemble, easy to repair, and (so far) indestructible. Here's the first cartridge insertion test:

The device's internals were still on a breadboard at this point, as I hadn't figured out the enclosure design yet.

Selecting a DAC, amp and speaker

For mono music playback from an SD card, I needed a digital to analog converter (DAC) to transform and amplify digital audio from the ESP32-S3 to drive the speaker.

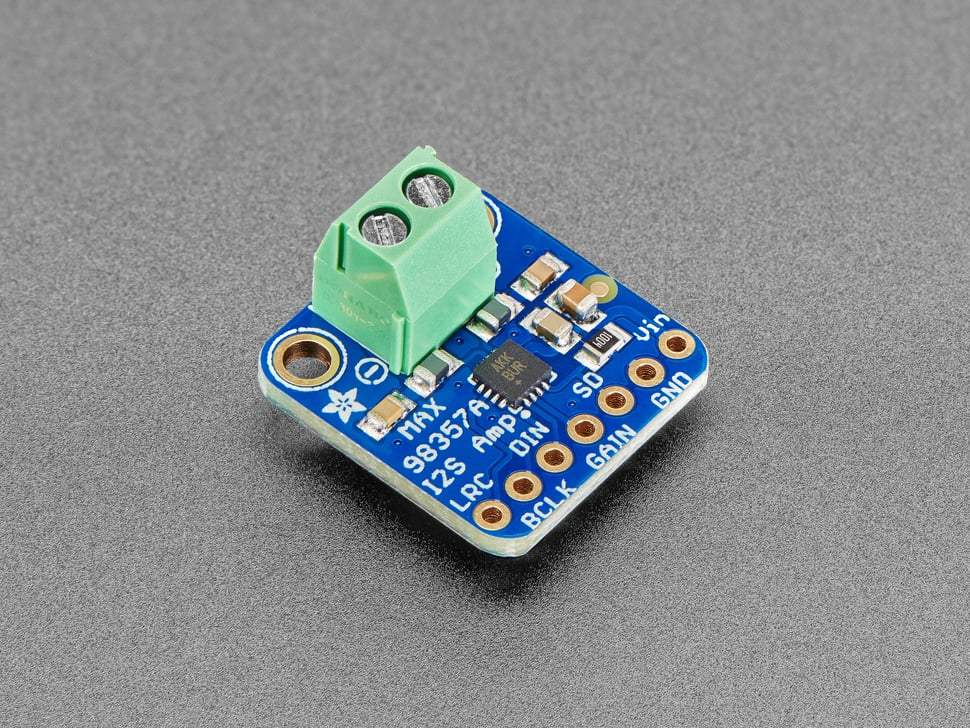

I chose the popular MAX98357A. Adafruit sells a breakout board for it, and there are many clones available.

The MAX98357A is a mono amplifier delivering up to 3W into a 4 Ohm speaker at 5V. Perfect for this project. It uses the I2S protocol, which my mcugdx framework already supported.

Given the amp specs, I went on a hunt for a good speaker. I ordered a few spec compliant speakers from Amazon and discovered the art of speaker enclosure design.

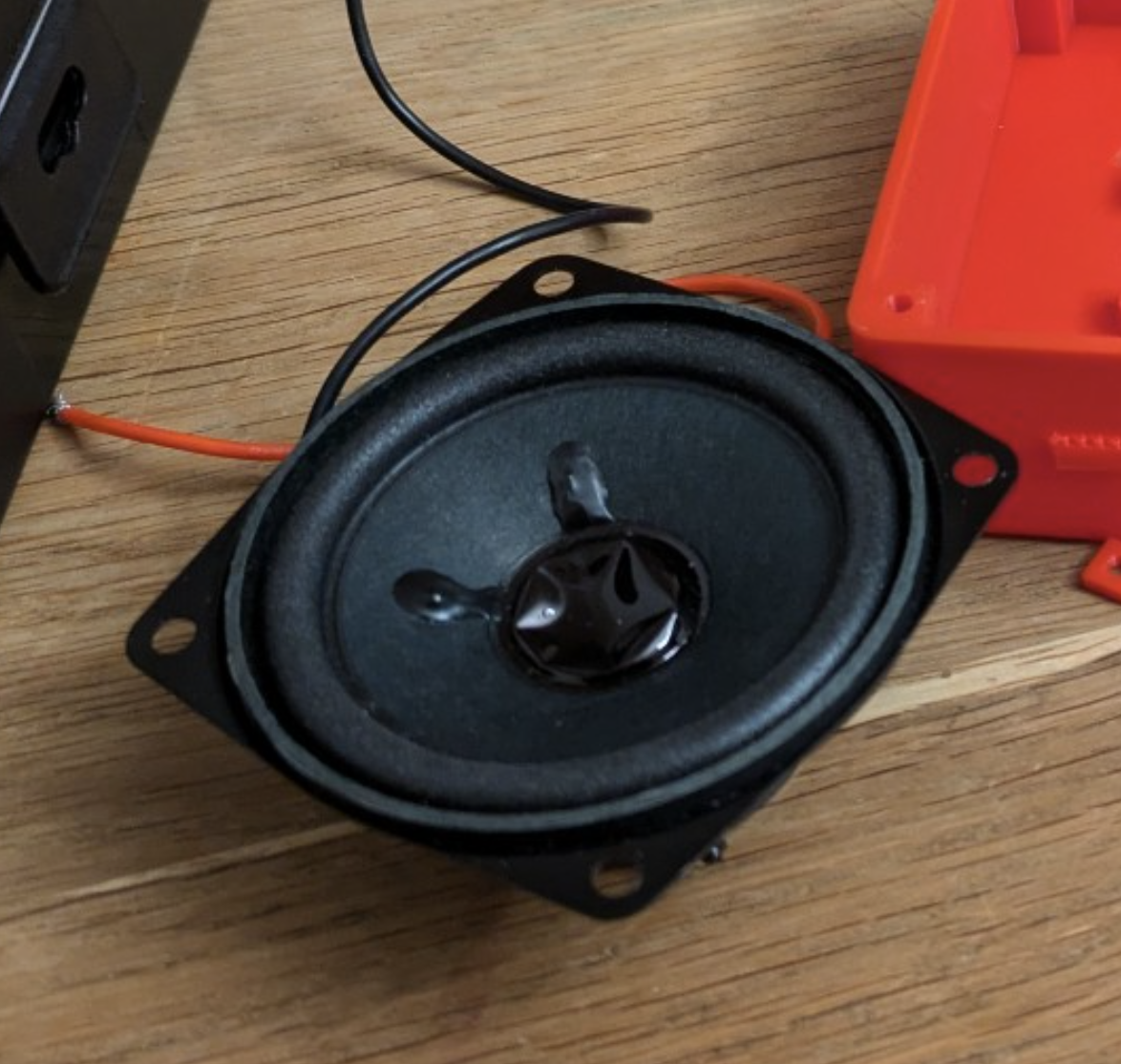

I settled on a Visaton FR 7/4, which offers good bandwidth and better sound quality than the Tonie Box speaker.

ESP32-S3 board with power management and battery charging

Before starting this project, I actually dabbled in designing my own ESP32-S3 board. There are many great boards on the market, with those from Waveshare and Unexpected Maker being my favorite. But I wanted to learn how to design such a board, should I ever need something that's not available on the market.

Turns out, I needed exactly that. None of the existing boards support charging NiMH batteries. They often don't have undervoltage protection built-in, but instead rely on measuring the voltage via GPIO and then switching the ESP32-S3 into deep sleep. I wanted to avoid that. Some also don't work well with both USB-C and a battery connected simultaneously. A requirement for my device, as I don't want to unplug the batteries just to connect a USB-C cable for flashing new software or debugging.

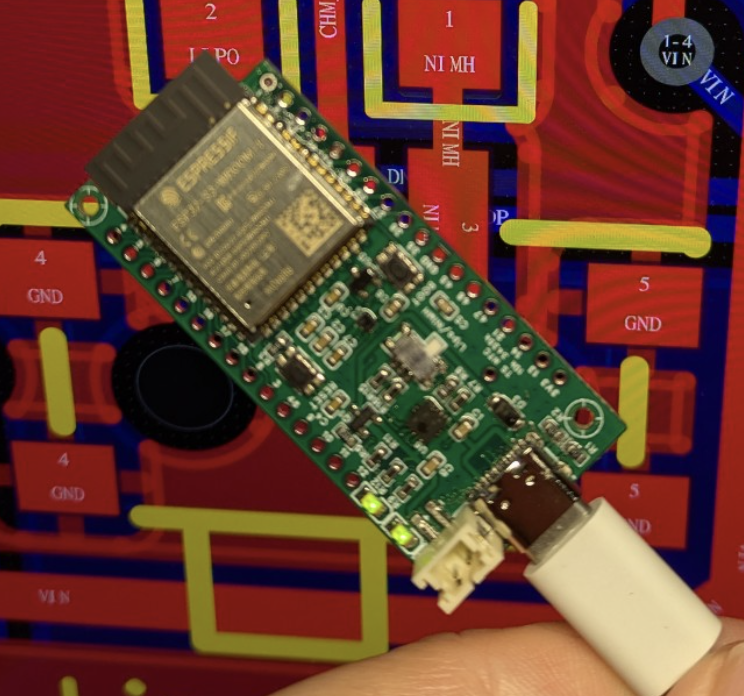

I went through a few iterations and eventually ended up with this:

The board serves as a foundation for all my project designs. Its features aren't specific to this project, but rather include capabilities I've found useful across all my projects:

Here's the full schematic:

Let me walk you through the schematic real quick.

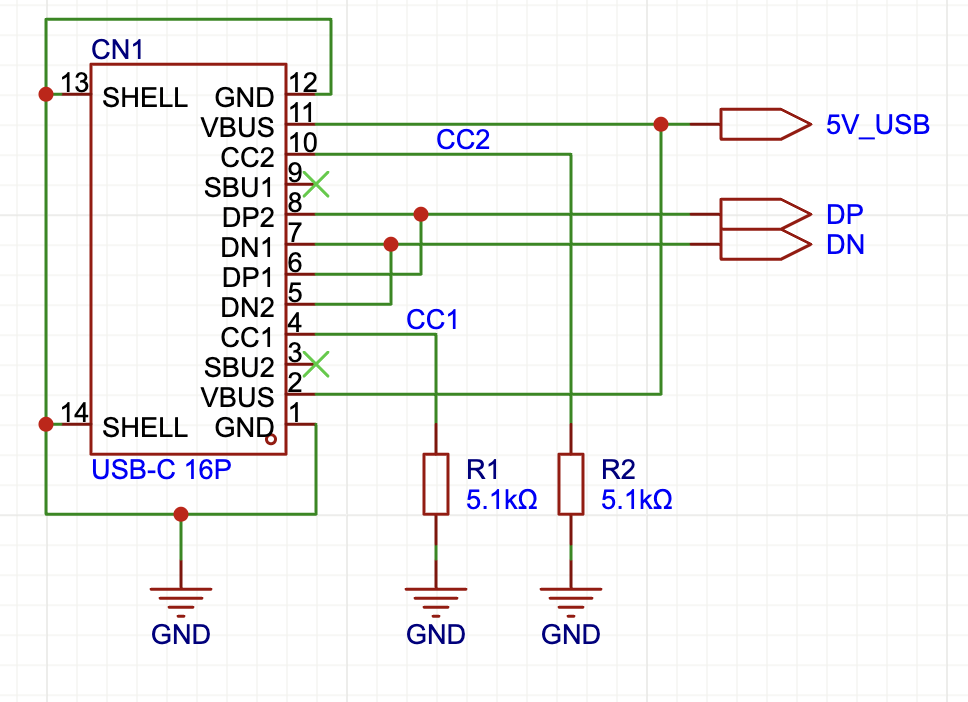

USB-C

Connecting a USB-C cable powers the battery charger and the device. The 5.1k Ohm resistors on the CC1 and CC2 pins allow the device to draw 0.5A if connected to a USB 2 source, or 0.9A if connected to a USB 3 source. The USB-C connector provides 5V to the system if connected to a USB source like my laptop.

For debugging and flashing, the DN and DP pins are connected to the ESP32-S3 GPIOs 19 and 20. The ESP32-S3 has built-in USB capabilities that handle all the communication. When routing these traces on the PCB, it's important to maintain equal length for both signals (known as a differential pair) to ensure proper USB signal integrity.

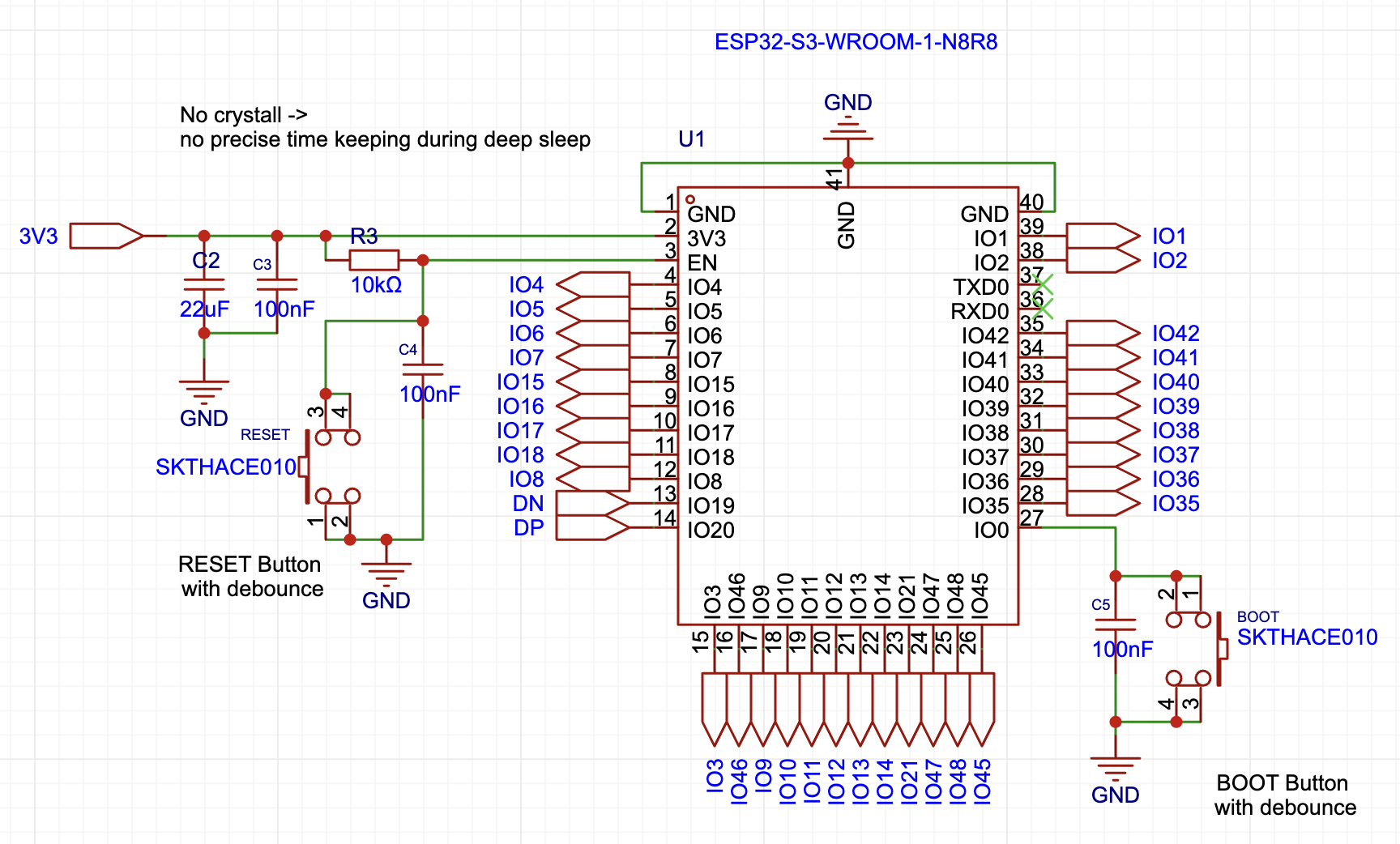

ESP32-S3

There are various variants of the ESP32-S3. I picked one with a built-in antenna, 8MB of flash, and 8MB of PSRAM. That's been sufficient for all my projects so far. And I don't need to wire up those components myself. Here's how it is wired up.

This mostly follows the recommendation in the ESP32-S3 hardware design guidelines. I didn't include a crystal needed for accurate deep sleep timing, as I never need that feature.

C1 and C3 are decoupling capacitors. R3 is a pull-up on the enable pin, that gets "overwritten" if the reset button is pressed, which grounds the pin and resets the device. C4 is a debounce capacitor for the reset button. A similar button setup is found for the boot button on the left side. Pretty simple!

The GPIOs are exposed at the edge of the PCB.

Battery charging via BQ25171-Q1

I spent a long time trying to find an IC that can charge both NiMH and LiPo batteries. I eventually settled for the BQ25171-Q1, by Texas Instruments.

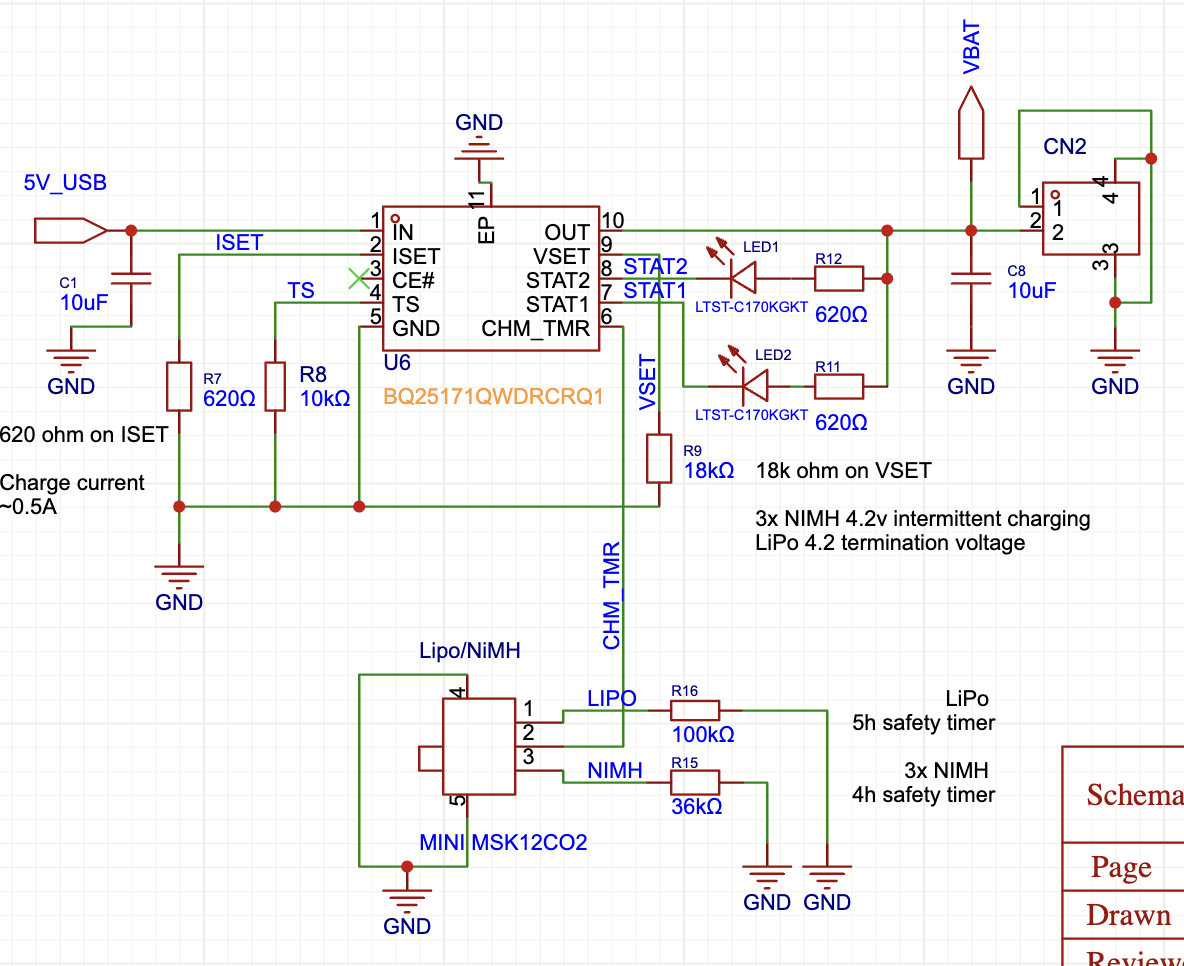

Here's the part of the schematic that deals with battery charging:

CN2 on the right side is a 2 pin 2mm PH connector, to which the battery is connected. VBAT is the battery voltage. On the left side of this block you find 5V_USB, which is the 5V from the USB-C connector. If USB-C is not connected, then VBAT powers the system, while the charger IC does basically nothing. If USB-C is connected, then 5V_USB powers the charger IC, which charges the battery. The battery is cut off from the system in that case, which we'll see in the next section.

The remainder of the schematic consists of components to configure the charger IC.

R7 connected to ISET sets the charge current to approximately 0.5A. R8 pulls the TS pin down to ground, disabling battery temperature monitoring. The PCB layout has provisions to wire up an NTC thermistor instead of soldering the R8 pull-down resistor.

The CHM_TMR pin is connected to a dip switch, which selects one of two resistors. R16 signals to the IC that we want to charge a single-cell LiPo battery at maximally 4.2V, with a 5 hour safety timer. The IC will actually terminate charging earlier and follow the usual LiPo charging curve. R15 signals to the IC that we want to charge 3 NiMH batteries in series, with a max charging voltage of 4.2V and a 4 hour safety timer. This configuration will not disable charging when the voltage reaches 4.2V, but instead keep charging until the safety timer is hit (or the optional thermistor signals that the battery is too hot).

The VSET pin is connected to a 18k Ohm resistor, which sets the maximal charging voltage to 4.2V for both battery chemistries.

Finally, STAT1 and STAT2 are connected to LEDs, which are connected to VBAT via 620 Ohm resistors. STAT1 and STAT2 are open-drain outputs; the IC will pull them low when the LEDs should light up.

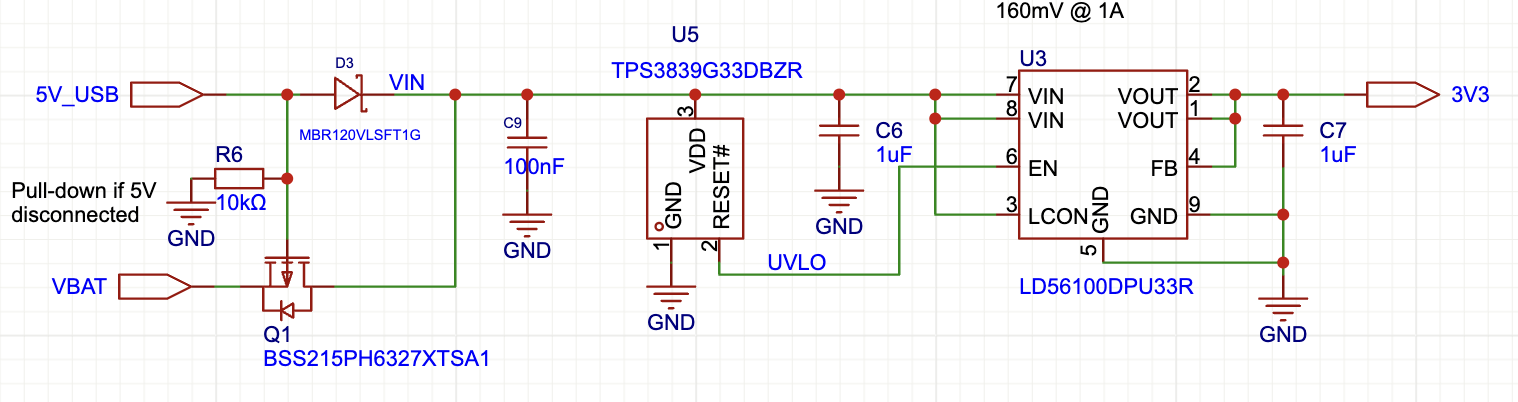

Power management

The system can either be powered by USB-C or by the battery. The USB-C voltage is 5V, while the battery voltage can range anywhere from 3-4.2V. The ESP32-S3 requires 3.3V, so we need to regulate the power source voltage down. We also want to prevent the battery from discharging below 3.08V, so we need a voltage monitor that can power down the ESP32-S3. Here's how that's done:

On the left side of the schematic, you see 5V_USB and VBAT. VBAT goes through a P-channel transistor. If USB-C is connected, the gate is pulled high, which will prevent power from the battery from reaching the system. If USB-C is not connected, the gate is pulled low, meaning that power from VBAT can reach the remainder of the system. This is a little trick I saw in the Unexpected Marker's ESP32-S3 Feather board. It's really simple power path management!

For extra safety, a schottky diode is placed after 5V_USB, just in case power from VBAT or some capacitor manages to sneak through for some reason.

C9 is a decoupling capacitor suggested by the TPS3839 datasheet. That is an ultra low power supply voltage monitor. If the voltage drops below 3.08V, it pulls its RESET pin low. That reset pin is connected to the EN pin of the low drop out voltage regulator to its right. If it is low, the voltage regulator is disabled, cutting off power to the system, thereby not draining the battery further. This is likely not strictly necessary, as the ESP32-S3 and other connected ICs will brown out well before the battery drains below 3.08V. But it's a good safety net.

The low drop out voltage regulator is a LD56100. It can provide 1A of current with a dropout voltage of only 120mV. The audio player draws no more than 60mA even with the speaker at max volume. That results in an even lower dropout voltage, which means we can make good use of most of the battery capacity.

The final output of this block is a clean 3.3V voltage, which powers the ESP32-S3 and the audio amp and speaker.

PCB Layout

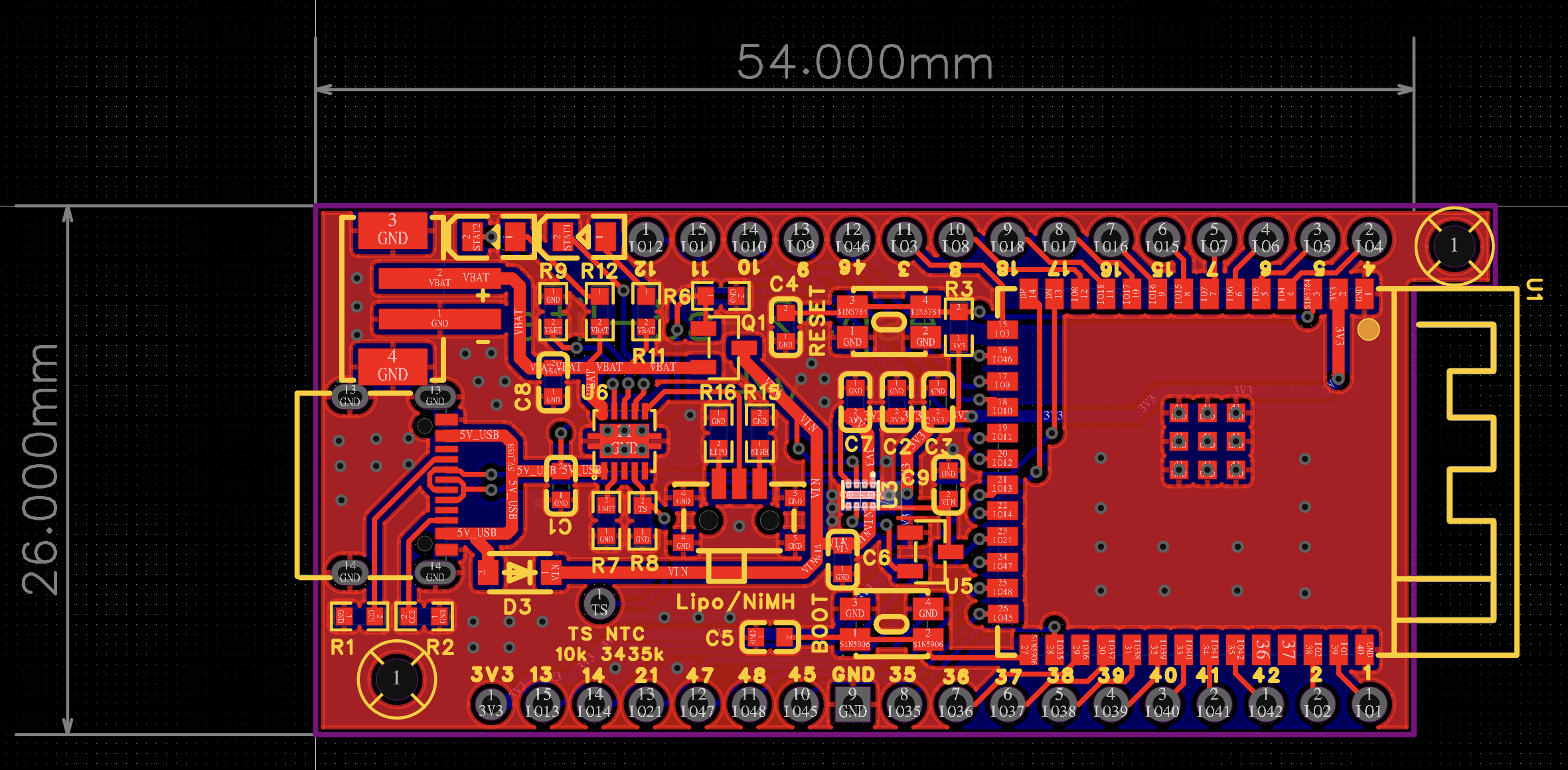

After digging through countless datasheets and wiring everything up in the schematic, I was finally able to start laying out the PCB. It's like advanced Tetris. I really enjoy it (even though I'm not good at it). Here's how I translated the schematic into a printable layout:

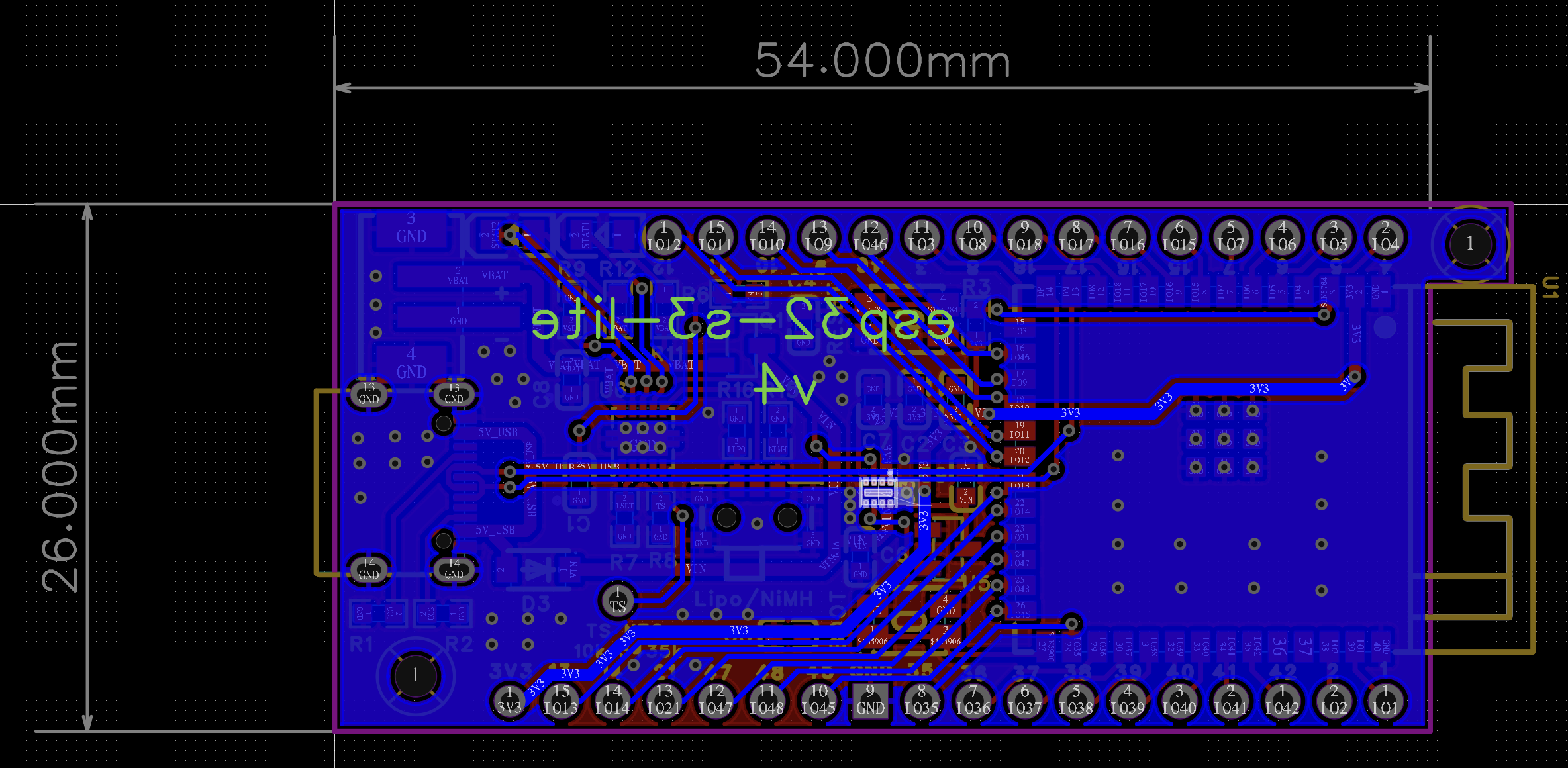

It's a 4 layer board, with two ground planes in the middle. The top hosts the circuits described above, while the bottom exposes most of the GPIOs. The board is breadboard friendly and also has screw holes for mounting in an enclosure. The power traces are thick enough to actually handle up to 1A of current, should the need arise. Though that kind of power could not be delivered via USB-C.

If you squint, you can see the differential pair for the USB signals. There are probably a gazillion things that could be done better, but it works and doesn't blow up, which is good enough for me. I'm pretty sure this wouldn't pass any kind of certification necessary to sell it as part of a commercial electronic device.

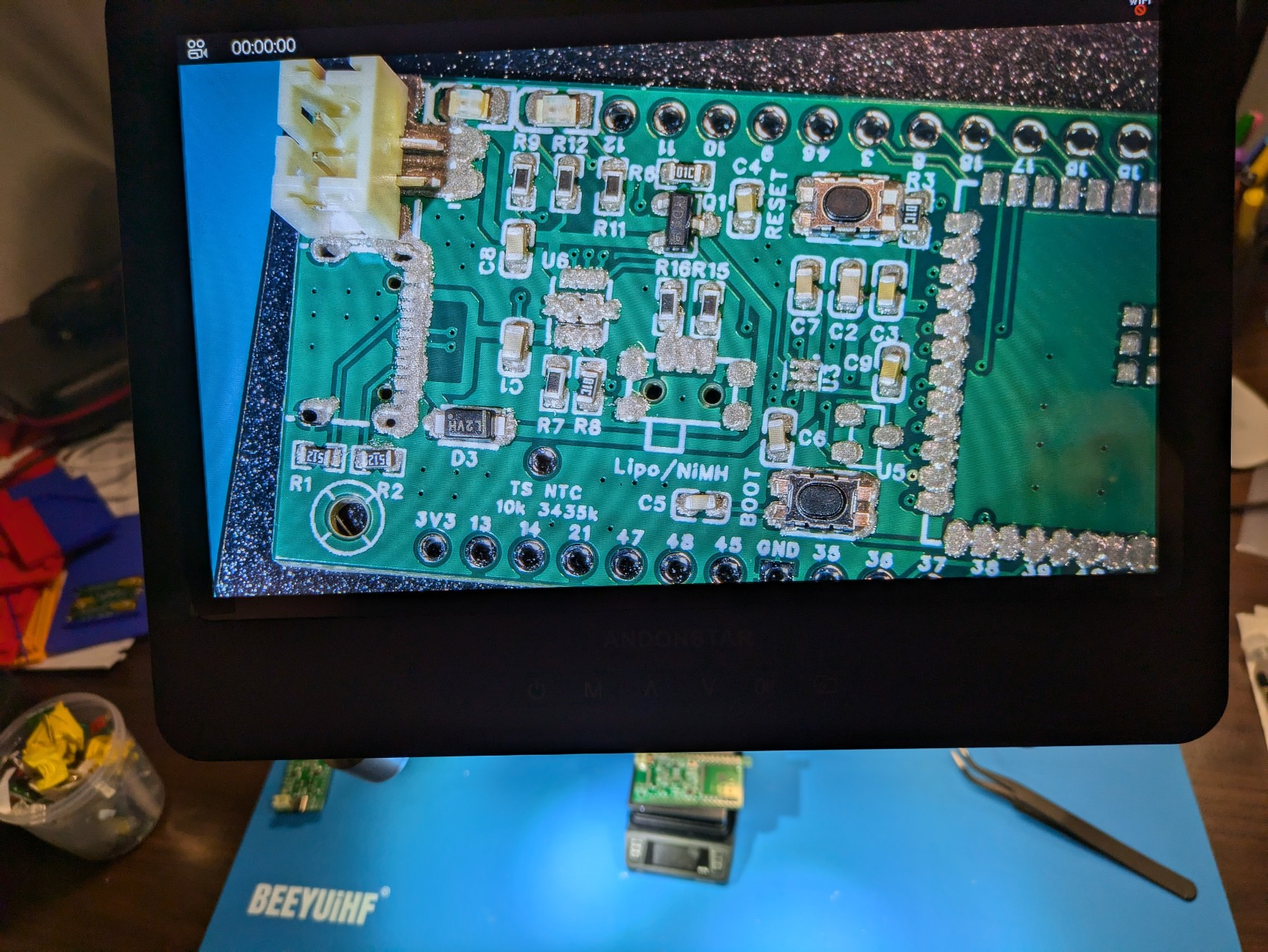

Soldering the board

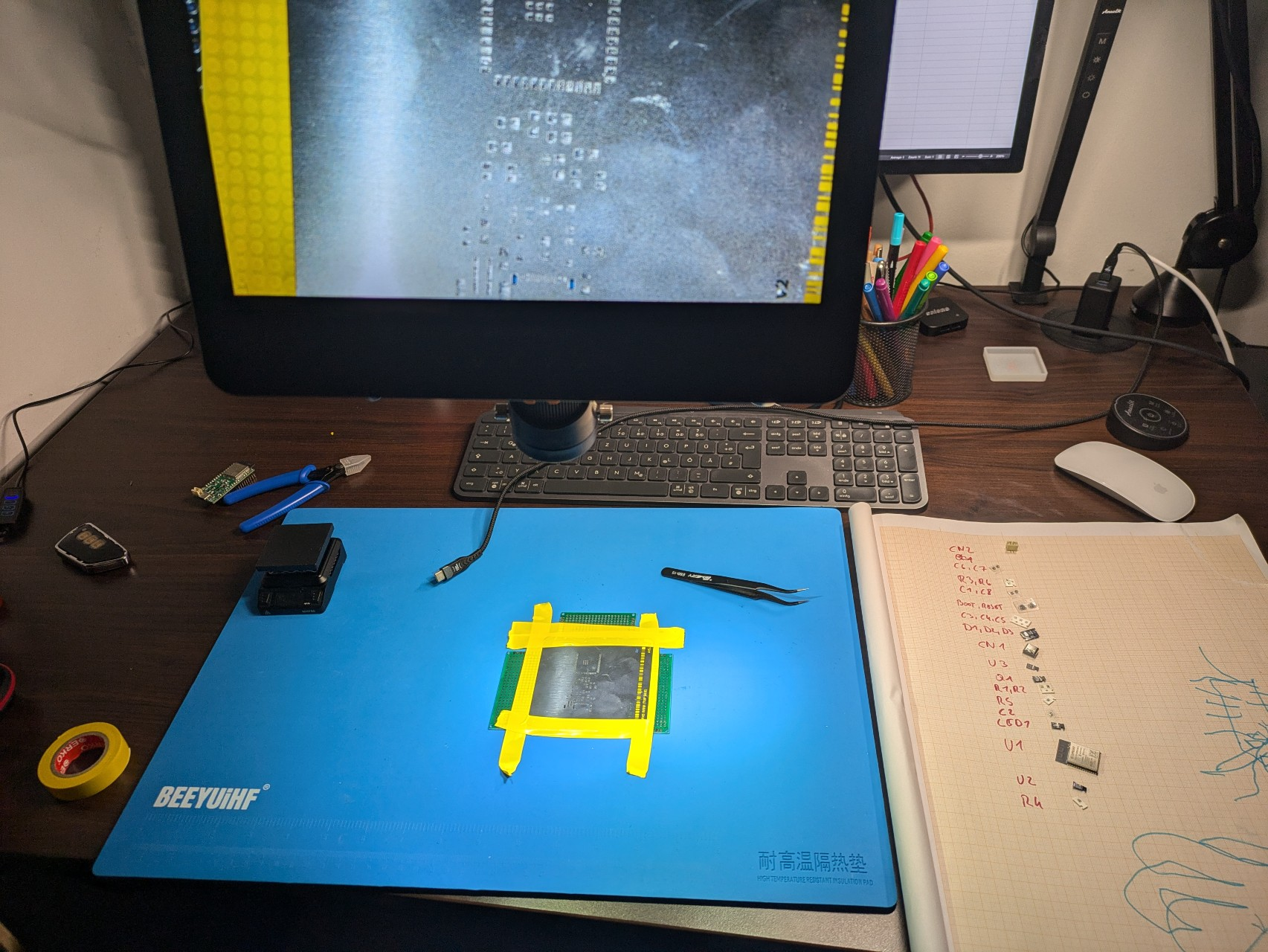

I ordered a stencil along with the PCBs, which makes applying solder paste much easier compared to the toothpick method I used for the cartridge PCBs.

Once the paste is applied, I start by dropping capacitors, resistors, tactile switches and other components with big pads onto the board. I then turn on my heating plate and let it melt the solder paste.

With the "easy" components out of the way, I inspect the solder on the pads for trickier components, like the ESP32-S3, the 1.2mm by 1.6mm LDO voltage regulator, and the USB-C connector. Chances are the solder paste has melted into a blob or formed bridges between pads. This tends to happen when too much paste is applied, especially on extremely tiny sub-millimeter pads. I use solder wick or my trusty toothpick to fix any bridges.

Only when I deem the solder on the pads to be good do I drop the "tricky" components onto the board and hope for the best.

Once everything is soldered, I flash a simple LED blinking sketch to make sure the board is working. If it's not, I use my multimeter to painstakingly check for expected voltages across the board. I also use my thermal camera to check for overheating components.

Buttons, knobs and enclosure

I designed the enclosure pretty early on in the process, based on the speaker and cartridge dimensions, and the cartridge slot mechanism. The enclosure consists of a top and bottom half, which are held together by M3 screws.

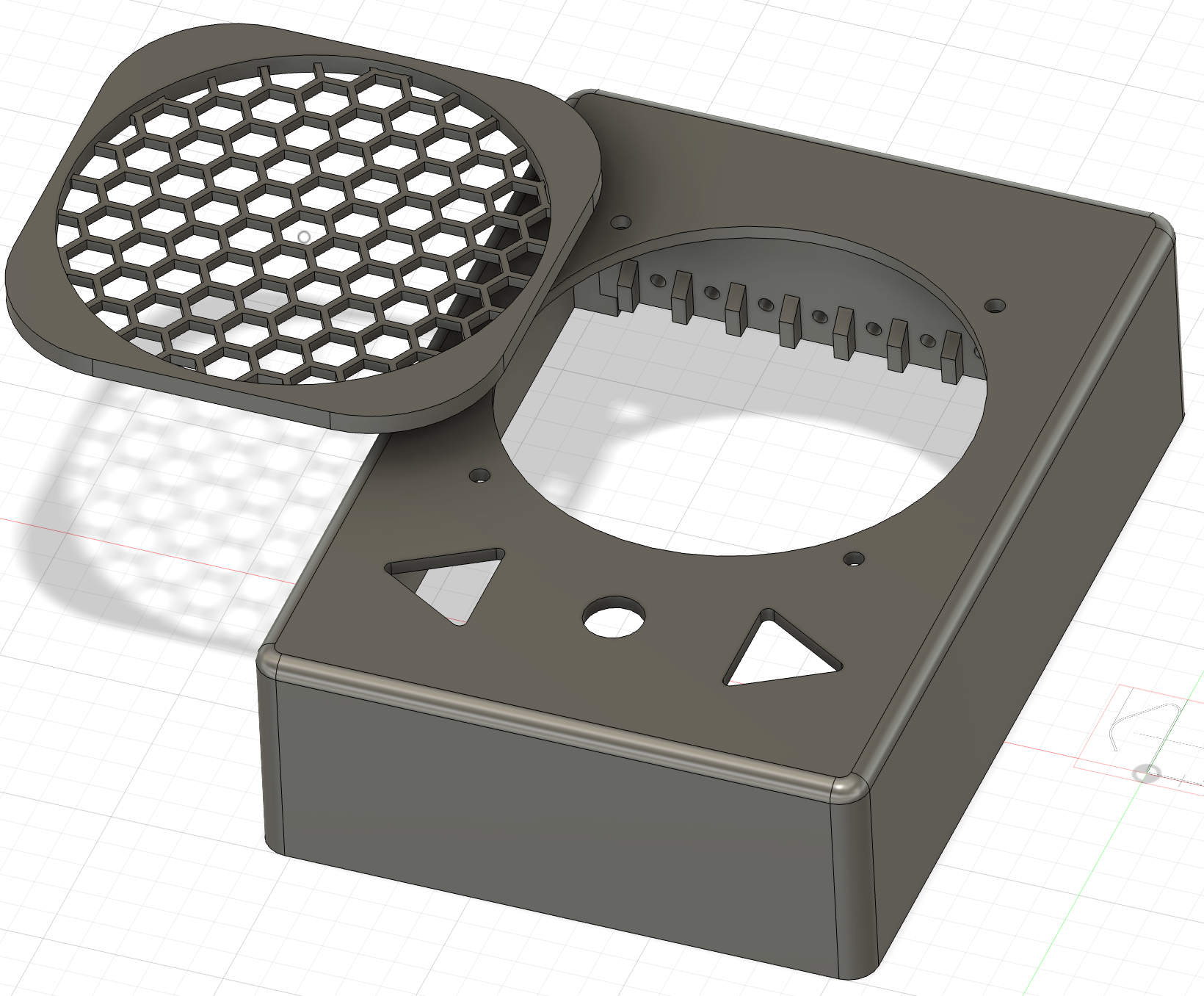

The top has cutouts for the buttons, volume knob, speaker. It also has a mounting bracket for the battery springs which serves as connectors to the cartridge pads. A separate mesh cover is mounted on top the speaker hole to protect the speaker from my boy's destructive tendencies.

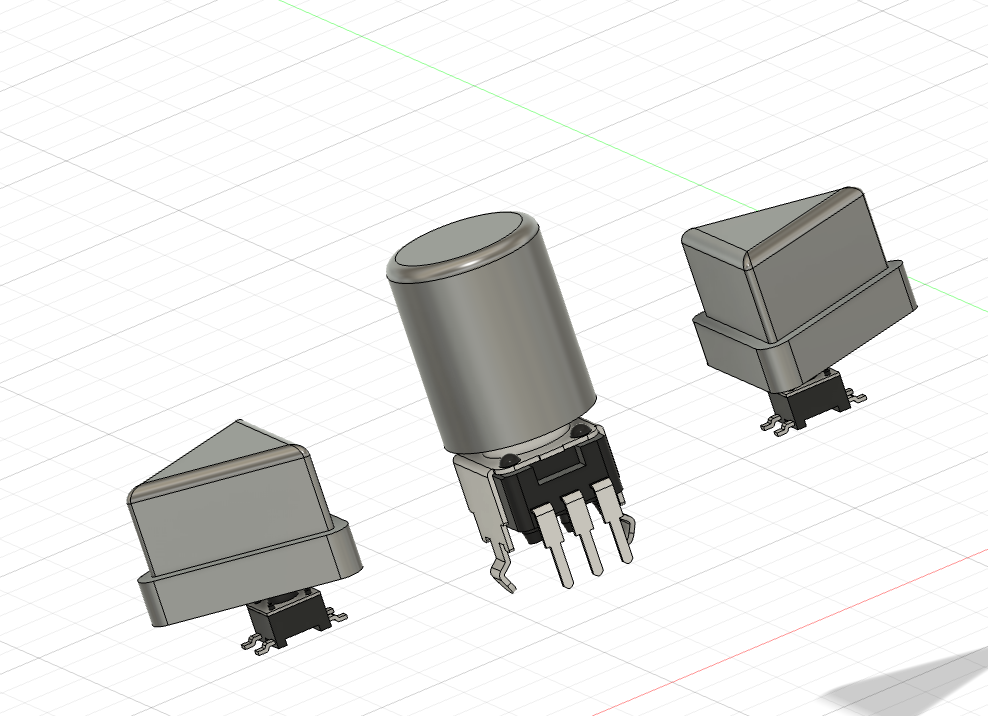

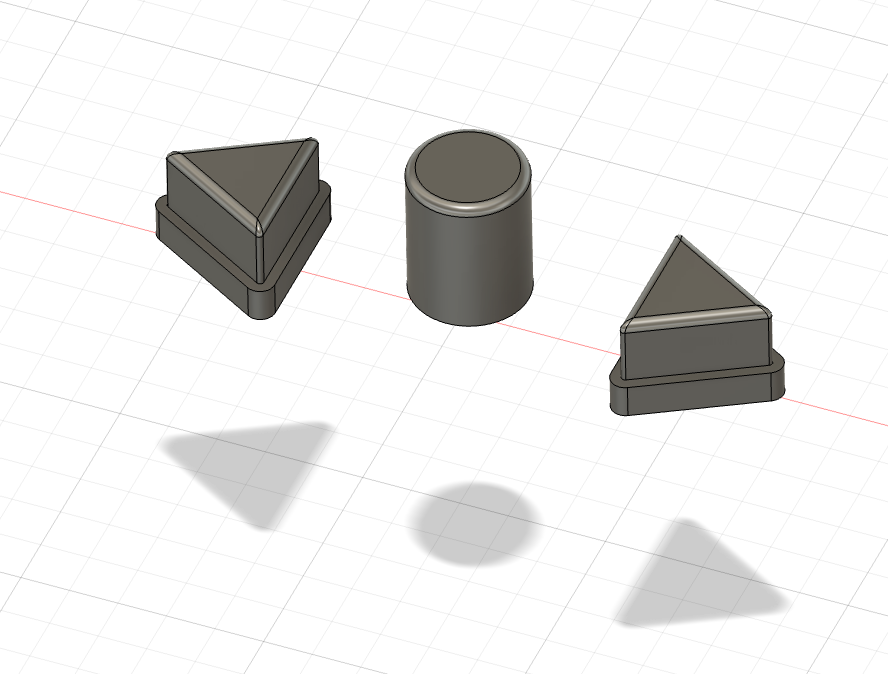

The buttons and knob are simple shapes, with their bottoms extruded, so they don't fall out of the enclosure through the cut outs. In case of the buttons, they sit atop simple tactile switches. The knob has a center cutout so it can be slid onto the potentiometer beneath it.

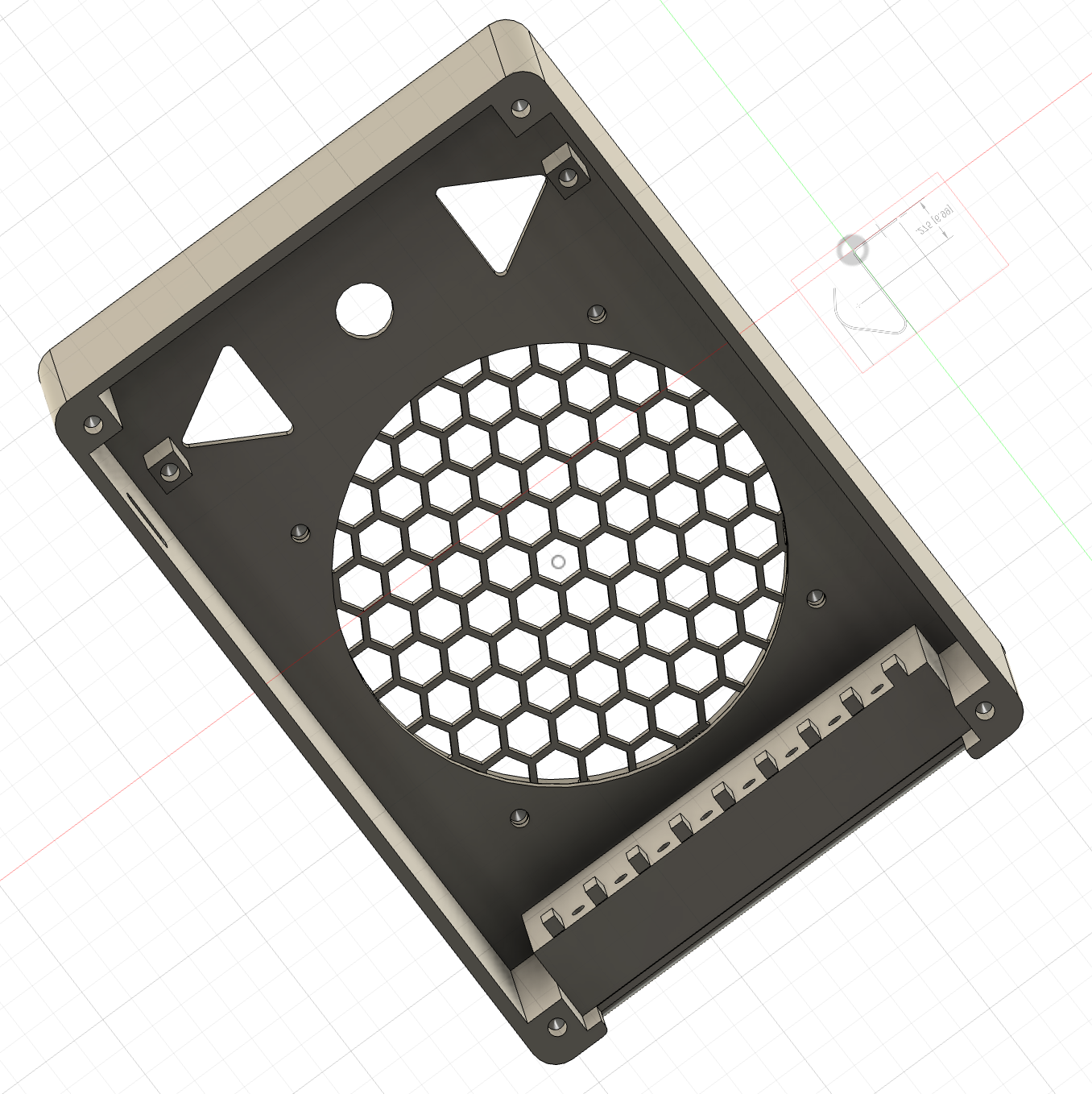

Turning the top upside down reveals two mounting structures to which a PCB can be screwed beneath the button cutouts. More on that PCB in the next section. You can also see spacers and screw holes for the battery springs, which make up the cartridge slot mechanism. There's also a cutout on the side for the USB-C connector for the ESP32-S3 board.

The bottom is pretty unremarkable. It features a bay for the 3 AAA NiMH batteries, a few spacers to make positioning the top on the bottom easier, and a weird little contraption consisting of what looks like a rod and two screw holes. Here's what that's for.

When a cartridge is inserted, the rod is pushed down, which pushes a switch that connects the battery to the ESP32-S3 board. It's a silly looking mechanism, but it has a few benefits. In the first iteration, I positioned the switch next to the cartridge slot. However, getting the position right was tricky. Also, routing the power wire around the magnet of the speaker led to interesting issues I was unable to debug or fix.

The rod solution just works.

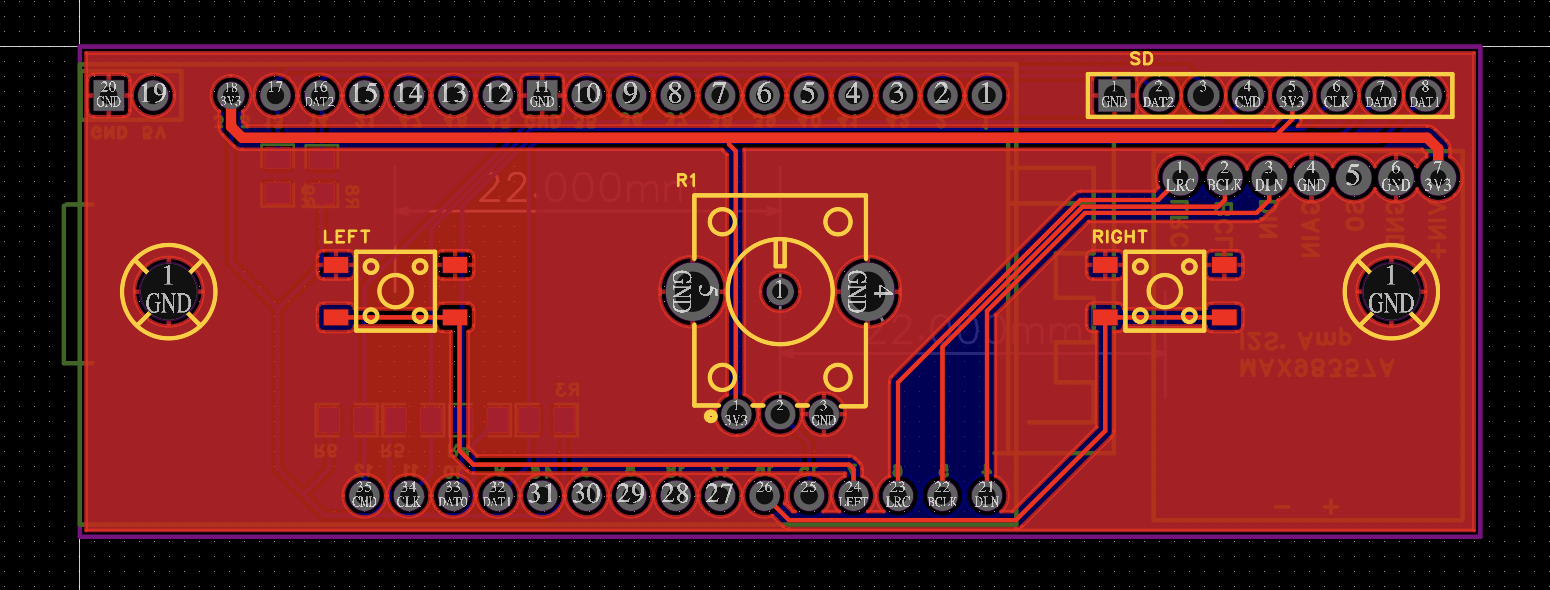

The mother board

As you can see in the last video, the innards of the device were still living on a breadboard at this point. The ESP32-S3 board, the amp, and the buttons and knob needed to be mounted inside the enclosure somehow. I had already designed mounting brackets on the top half of the enclosure, taking into account the size of the tactile switches, the potentiometer, and their 3D printed covers. This allowed me to measure the remaining space in the enclosure inside Fusion 360, based on which I sized a carrier PCB or motherboard. Here's the schematic:

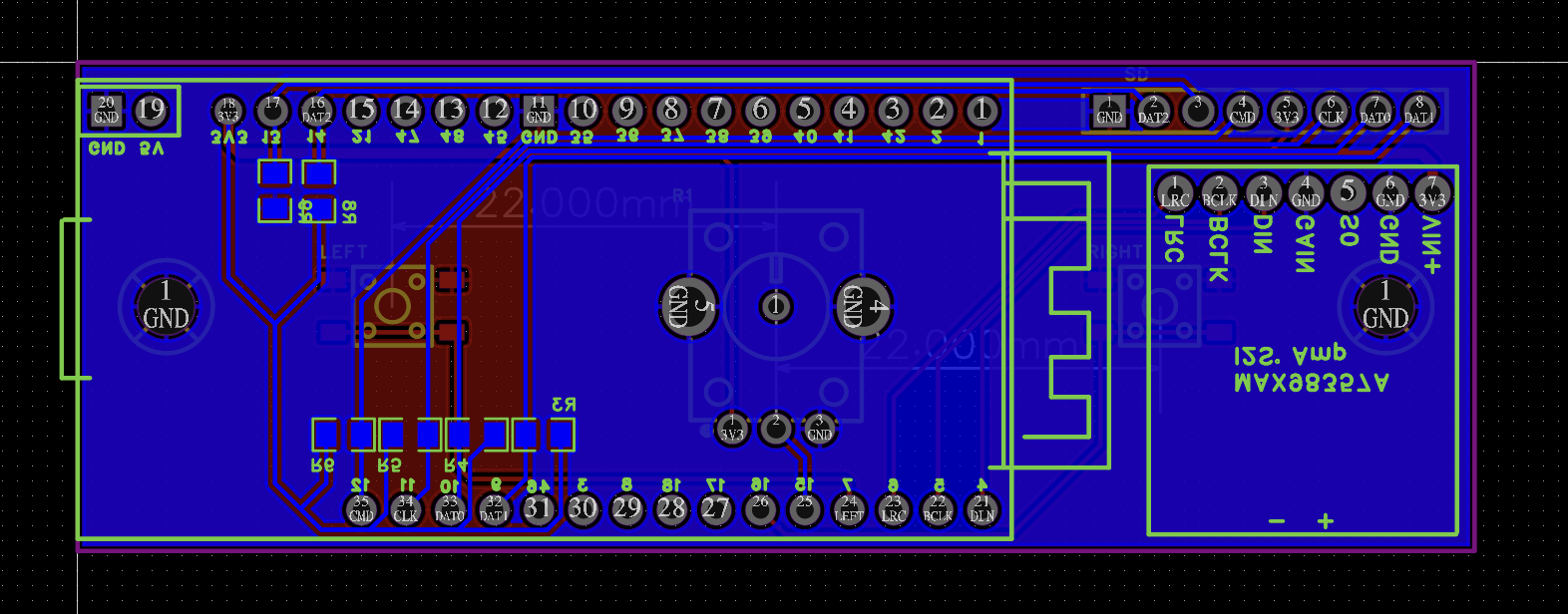

To the left is the MAX98357A audio amplifier breakout board. The ESP32-S3 board is at the center. At the bottom are the tactile switches and the potentiometer. And to the right are the connections to the battery springs of the cartridge slot. Everything is wired to appropriate pins on the ESP32-S3 board. The SD card traces also feature pull-ups as necessary.

It's a 2-layer board. The top layer houses the tactile switches and the potentiometer. The bottom layer has 2.54mm headers into which I can plug the MAX98357A breakout board and the ESP32-S3 board. In the top right are pads for the SD card connections which are wired to the battery springs of the cartridge slot.

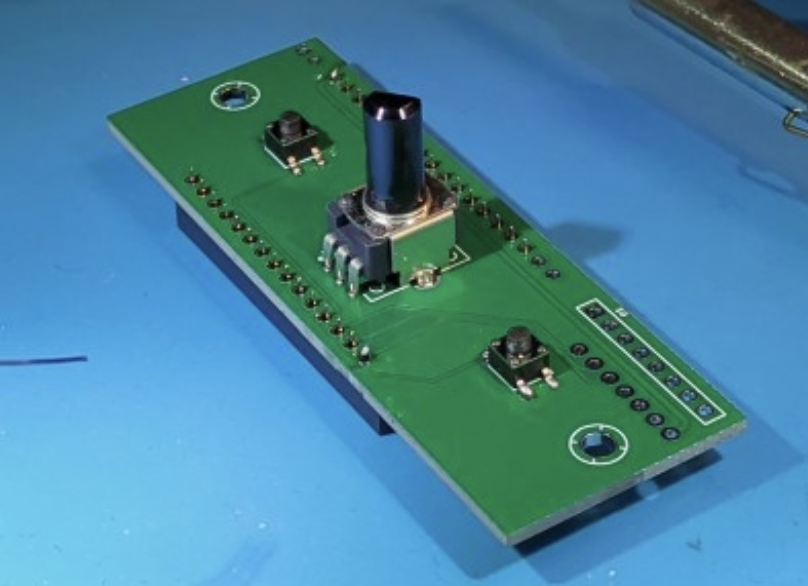

Here's the motherboard with tactile switches, potentiometer, and headers soldered to it:

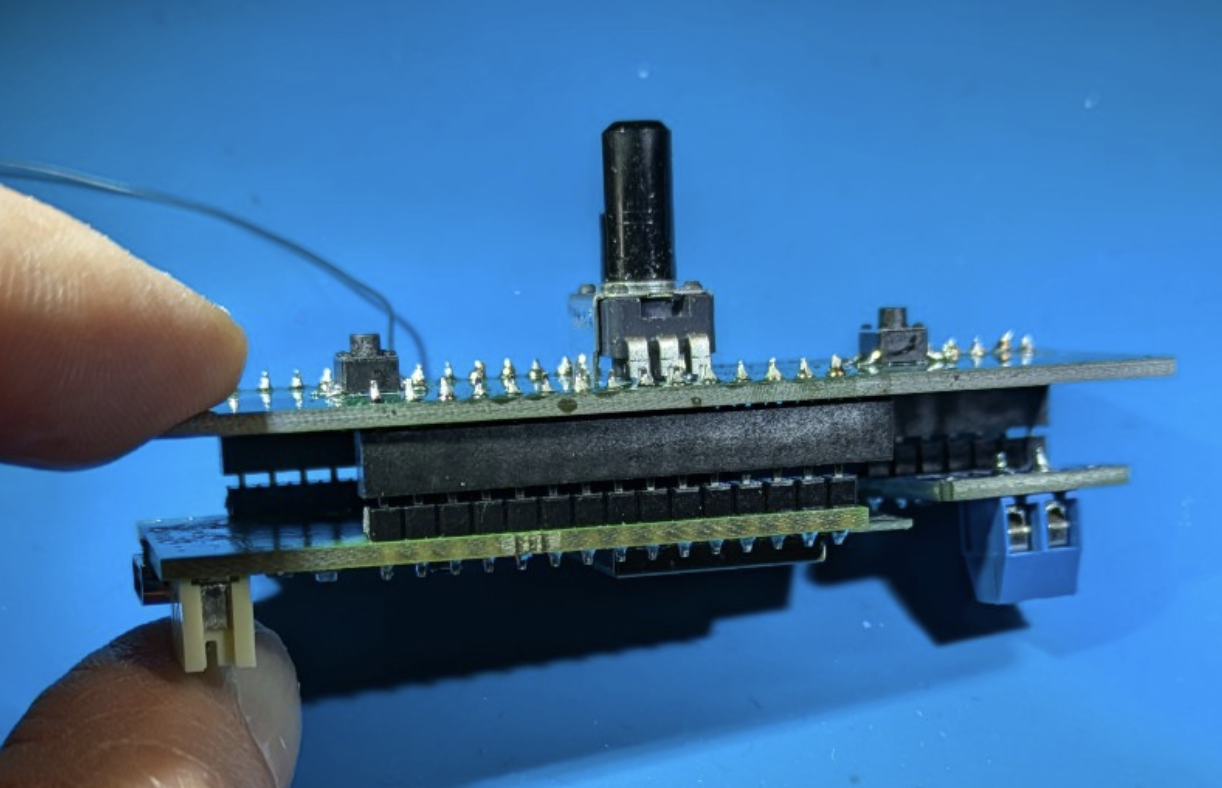

And here it is with the MAX98357A breakout board and the ESP32-S3 board plugged in:

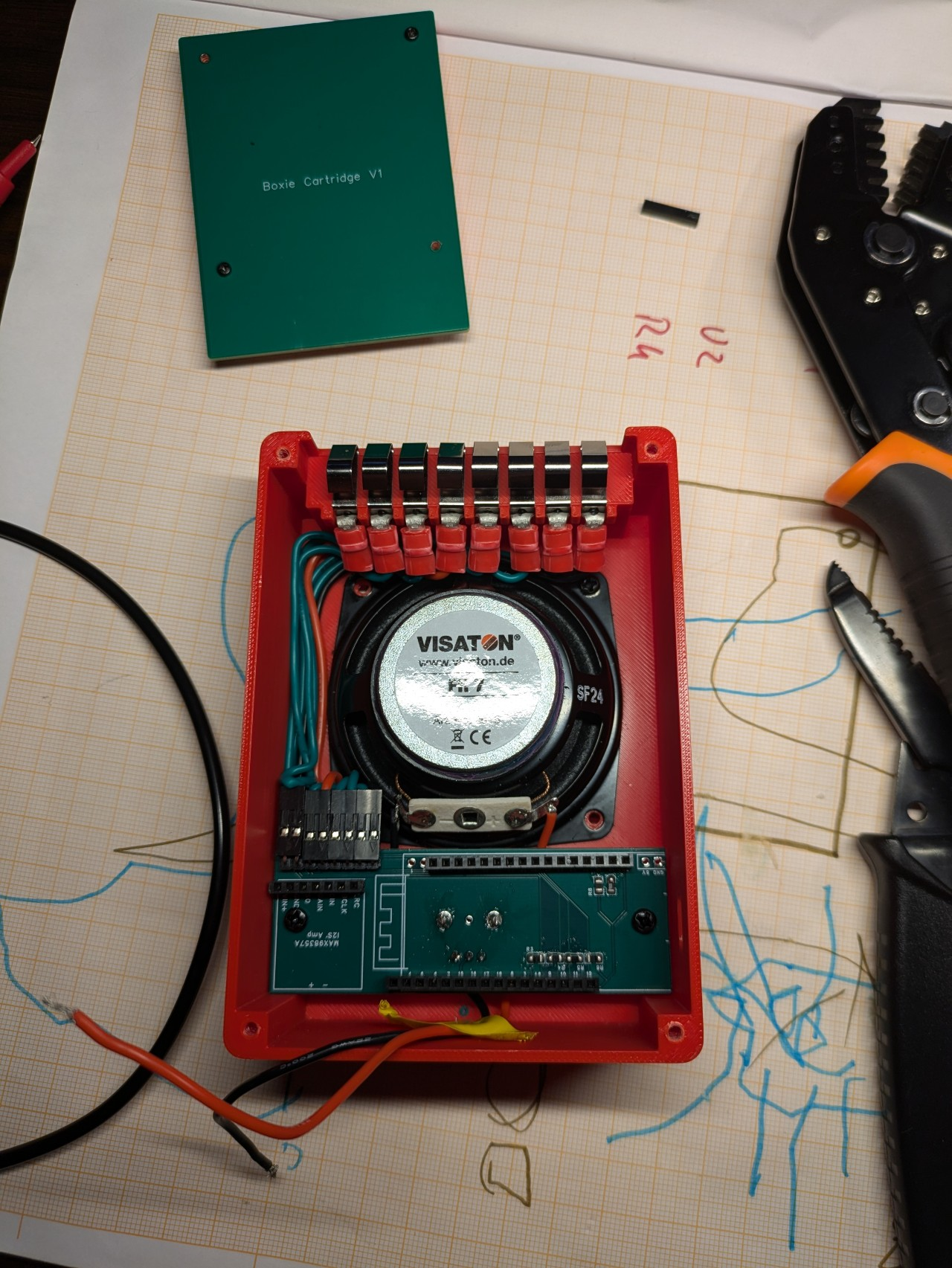

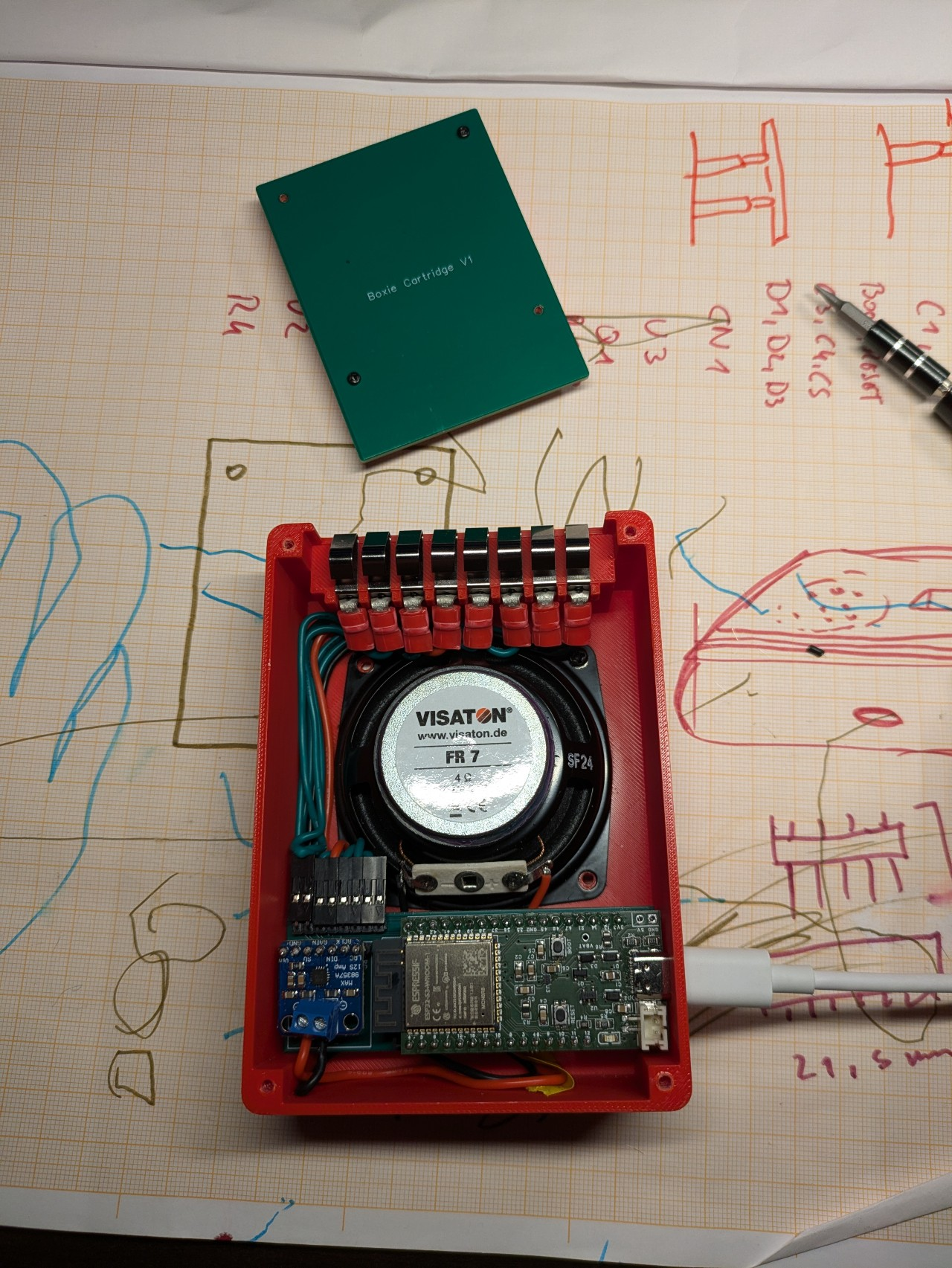

The motherboard is screwed to the top half of the enclosure and wired up with the cartridge slot mechanism.

Then I plug in the ESP32-S3 board and the MAX98357A breakout board and wire up the speaker to the amp, and the battery to the ESP32-S3 board.

(Note that the ESP32-S3 board is an earlier iteration but the principle is the same.)

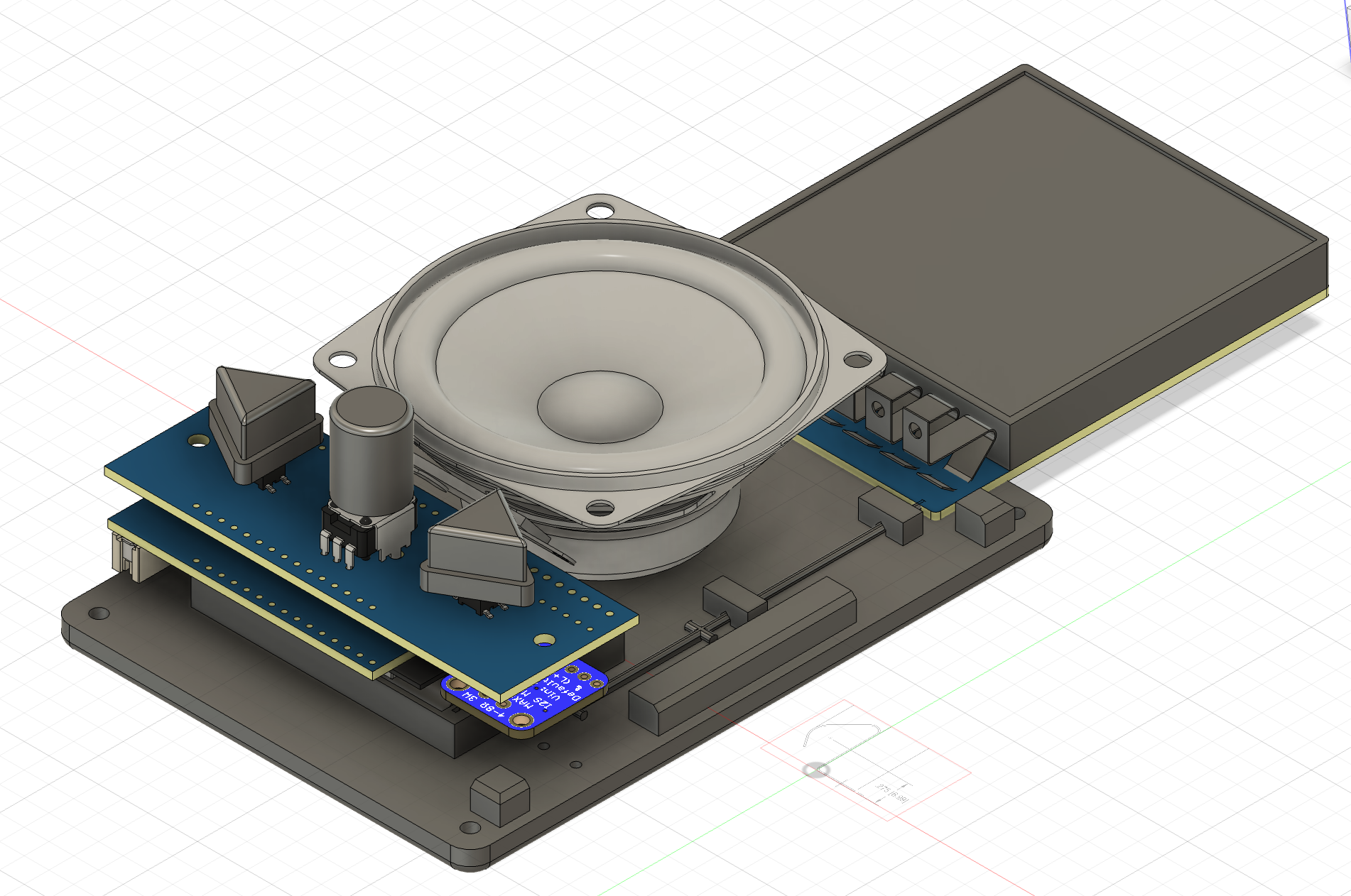

The trick to getting this all lined up is importing 3D models of all components into Fusion 360.

EasyEDA allows exporting a 3D model of the PCB, including the components (if they have 3D models). This allows me to experiment with component placement and orientation, try out different PCB layouts, etc. That saves me enormous amounts of time and frustration.

Software

The software is straightforward and based on my mcugdx framework. The entire source code is a single 390 LOC file that uses the "easy" mcugdx API to:

You can dig into the mcugdx sources to see how to implement all this under the hood on top of ESP-IDF.

Mario, how do I build this myself?

I'm glad you asked. It's definitely not for the faint of heart. Assuming you have everything needed to solder SMD components, wires, M1-M3 screws, and basic tools like pliers (see recommended items above), here's what you need specifically for this project:

Assembly steps for the player:

You can now flash the boxie firmware to the ESP32-S3 board. Clone the repo, then use the ESP-IDF CLI to compile and flash the firmware. Tested with ESP-IDF v5.3.2. The sdkconfig.defaults file is set up for the custom ESP32-S3 board.

Assembly steps for the cartridge:

Future work

I need to add a headphone jack to the device. The jack must have a pin that signals the ESP32-S3 when headphones are connected. When connected, I'll need to disable the MAX98357A amplifier by pulling its SD pin low. This requires a reworked motherboard and some voltage management for the SD pin when no headphones are present. The jack would be positioned opposite the USB-C port, requiring a minor enclosure modification.

I also need an IC to convert the I2S signal (currently sent to the MAX98357A) to a headphone output. I haven't researched options yet. The motherboard will need additional routing to send the I2S signal from the ESP32-S3 to both the MAX98357A and this new IC. Suggestions welcome!

Bonus content: USB cartridge reader

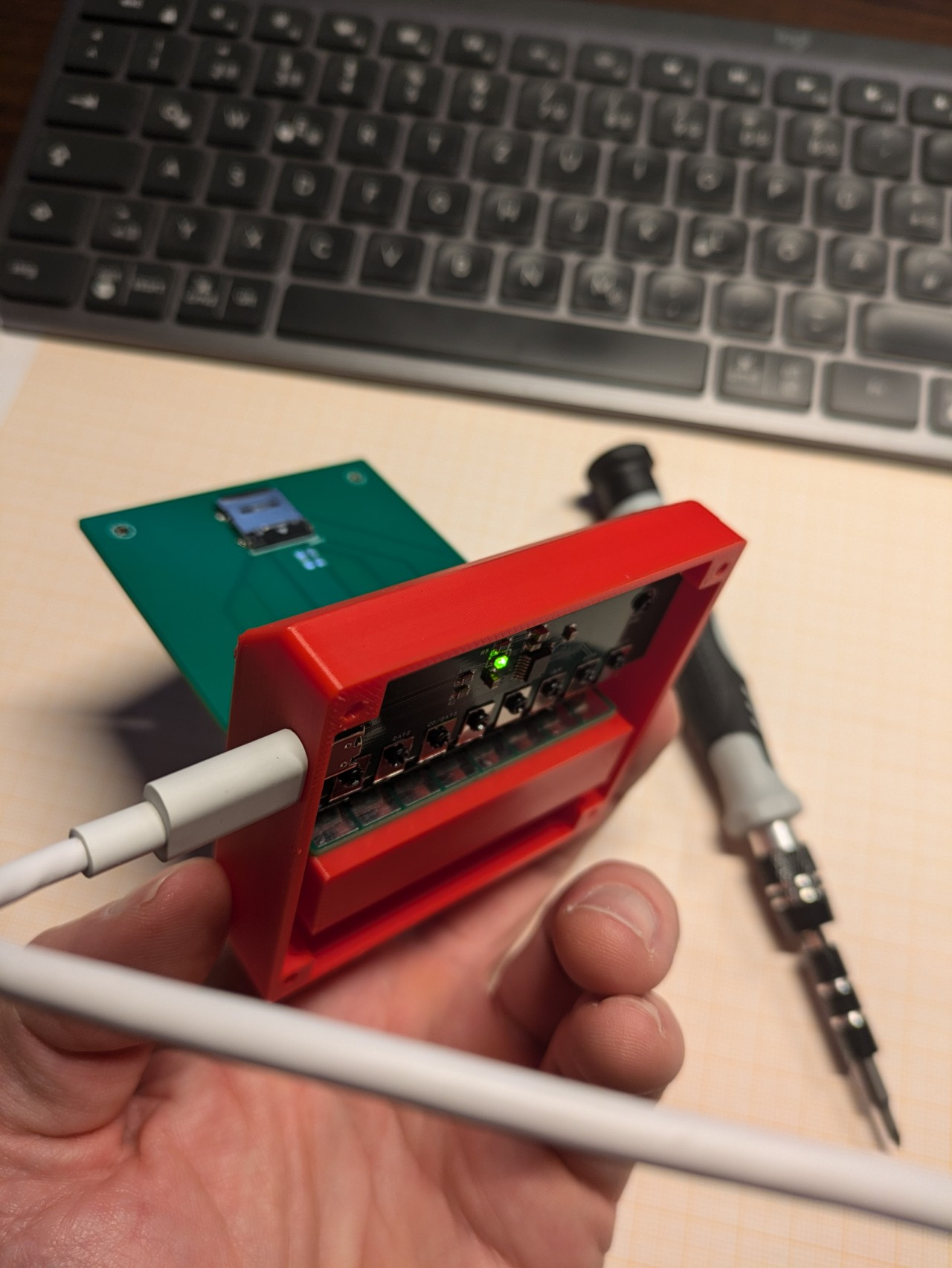

I designed a USB cartridge reader for convenience. Instead of unscrewing a cartridge's cover to access the SD card, the reader lets me modify files by simply plugging the cartridge into my laptop via USB, where it appears as a mass storage device.

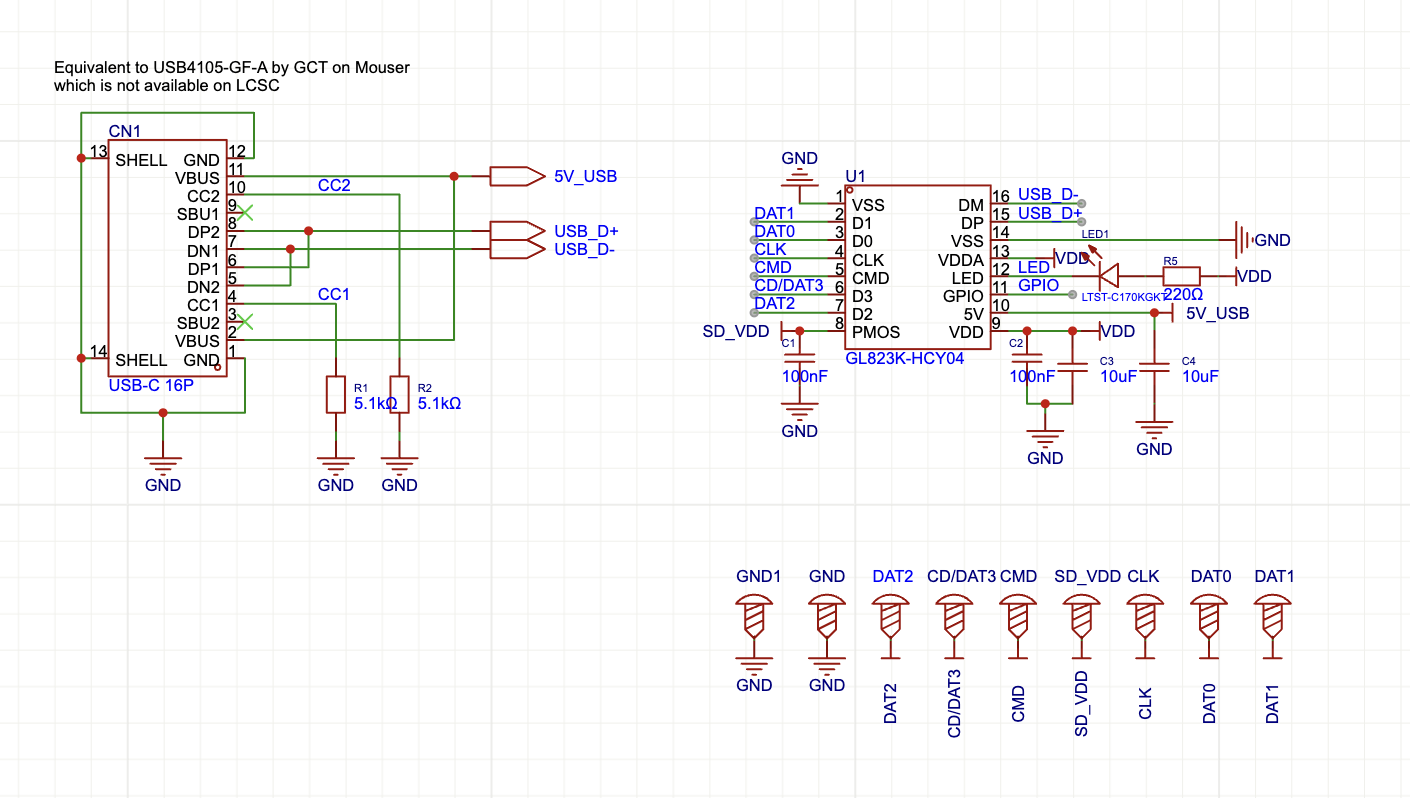

Here's the schematic:

It's essentially a wrapper around a Genesys Logic GL823K IC, a USB 2.0 SD/MSPRO Card reader controller.

I rarely use it since I typically insert SD cards directly into my laptop before assembling cartridges. Still, it was a fun side project.

Bonus content: modding the Andonstar AD249S-M digital microscope

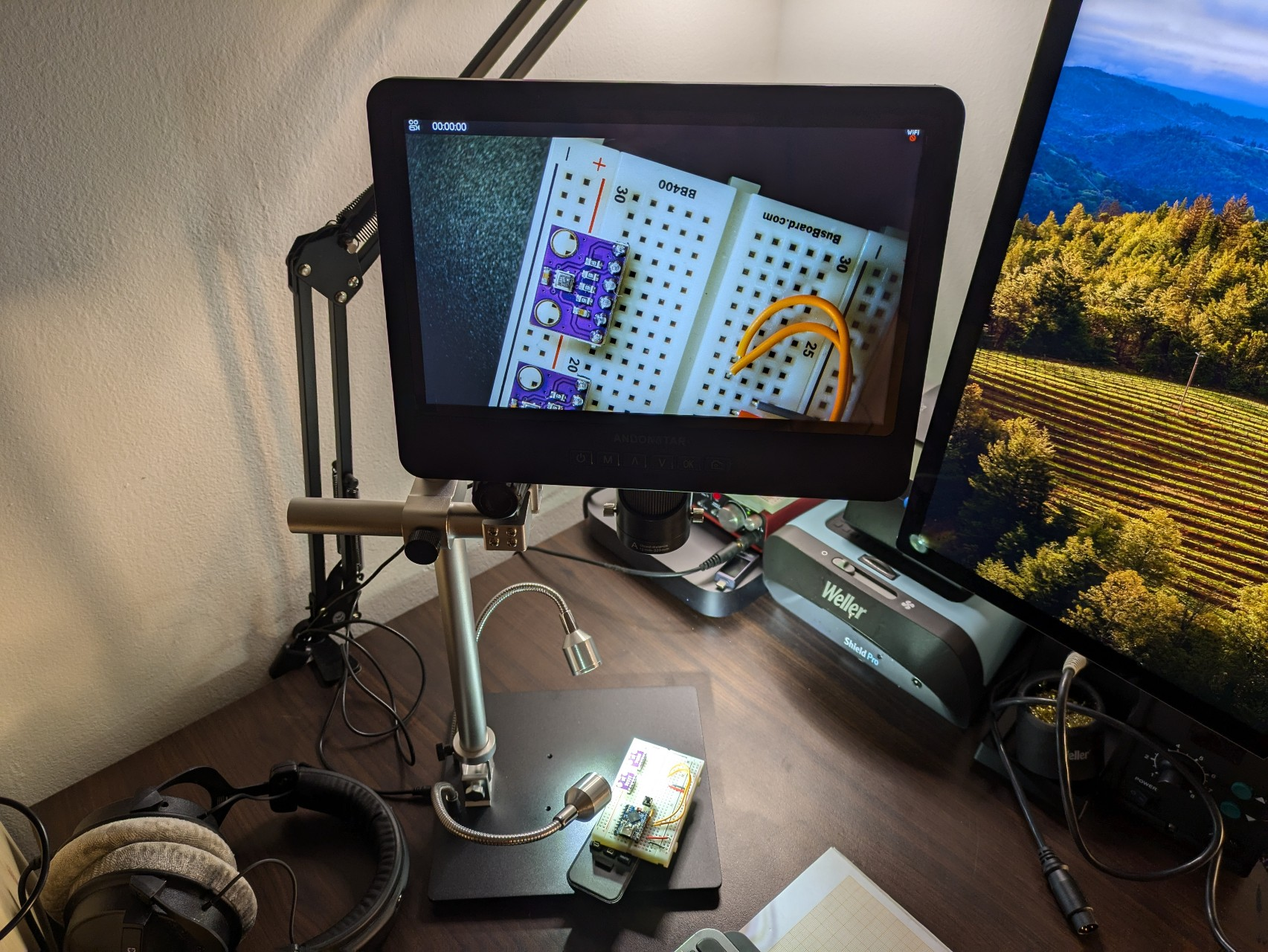

The microscope comes like this originally:

I preferred mounting it on a Rode PSA1 articulated arm attached to my desk. This gives me nearly unlimited movement across my work area.

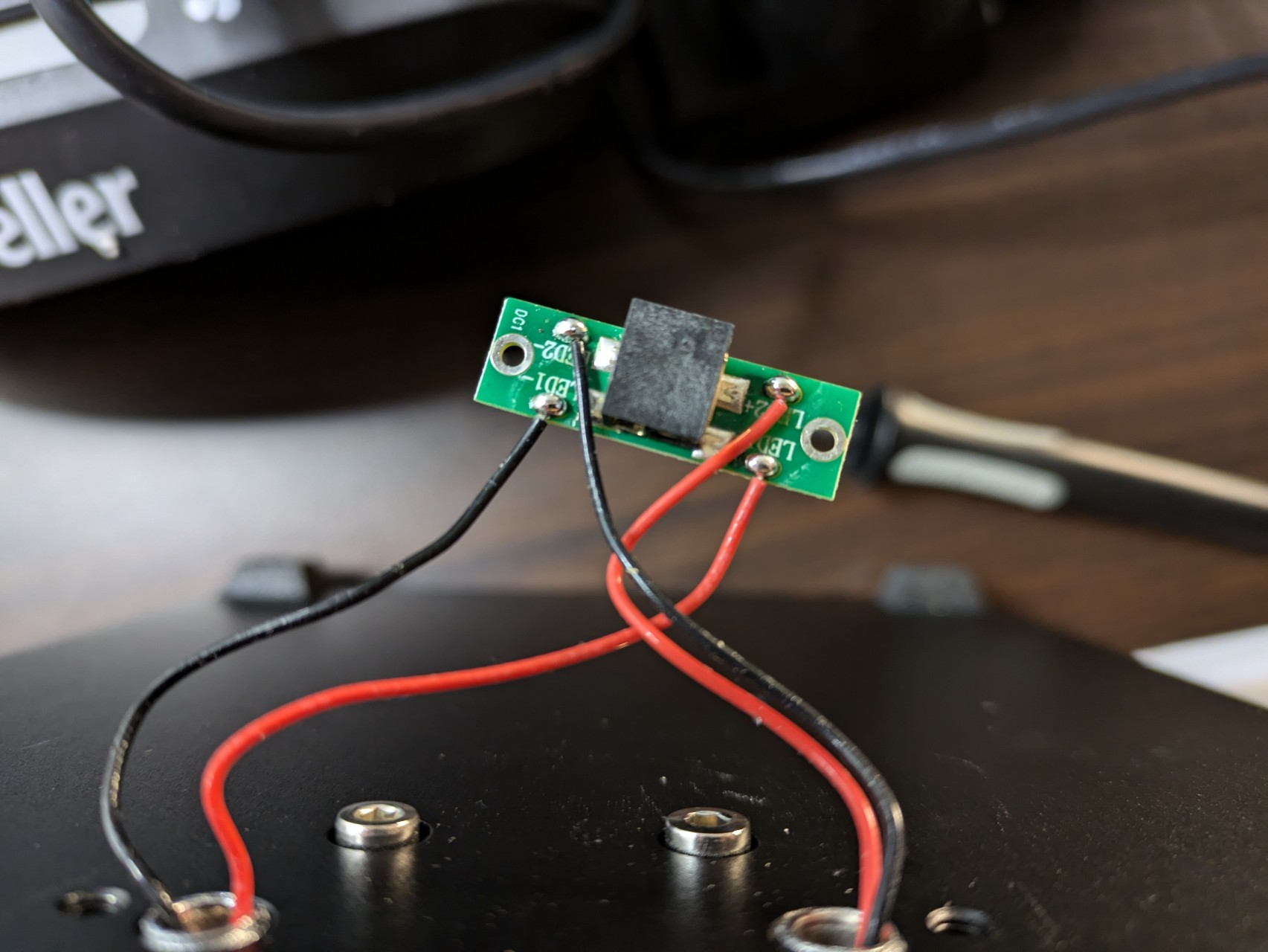

The microscope stand includes a control PCB for the LED lights.

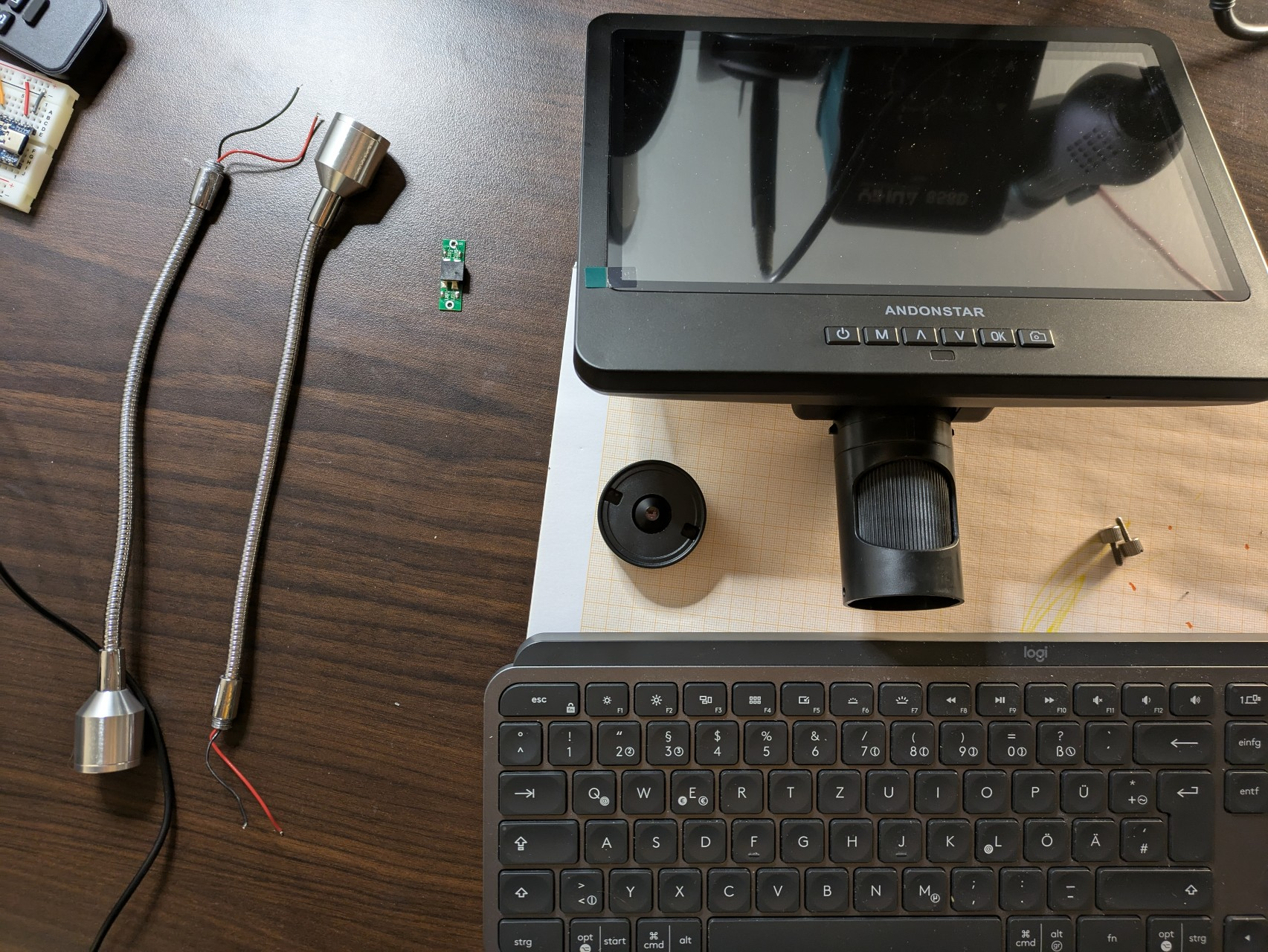

I disassembled it and removed the control PCB and LED light arms.

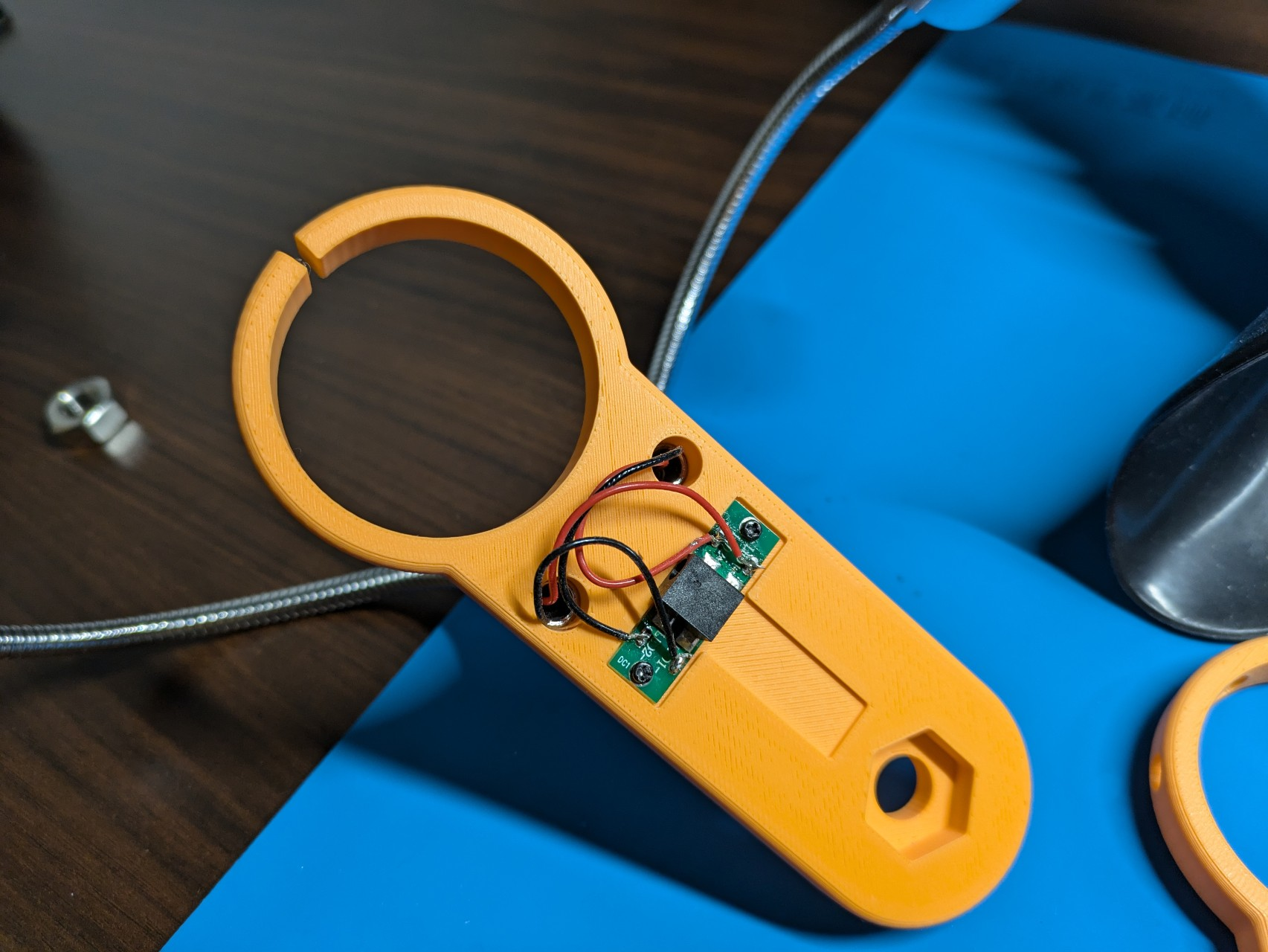

I then designed and 3D printed a mount that attaches to the PSA1 arm, houses the control PCB, and accommodates the LED light arms.

Note: The final version uses a different fastening mechanism with a screw and wing nut, but this demonstrates the concept.

Here's the 3MF file for the mount, ready for 3D printing. I used PLA with BambuLab slicer defaults.
